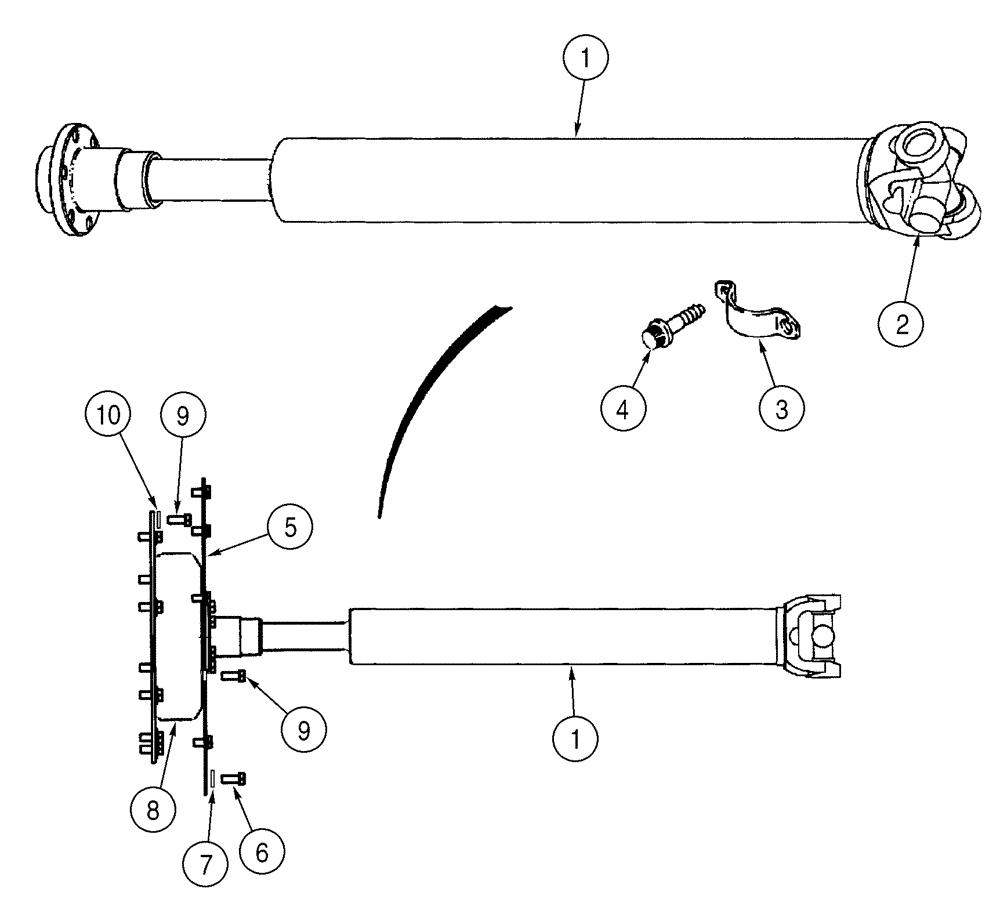

Запчасти Case 621D (06-37) - DRIVE SHAFT (06) - POWER TRAIN

1

352068A2

DRIVE SHAFT

1шт.

Engine

1шт.

Incl. 2

1шт.

2

403571A1

SPIDER ASSY.

1шт.

3

D137626

CLAMP,30.175mm D Clamping Pipe

2шт.

Bearing

1шт.

4

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

Hex Flange Head, Special, 5/16 - 24 UNF x 1-1/16; Replaces D137627 Bolt

4шт.

5

389846A1

COVER

1шт.

Flywheel

1шт.

6

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

12шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

12шт.

8

355829A1

COUPLING

1шт.

9

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

14шт.

10

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

8шт.
