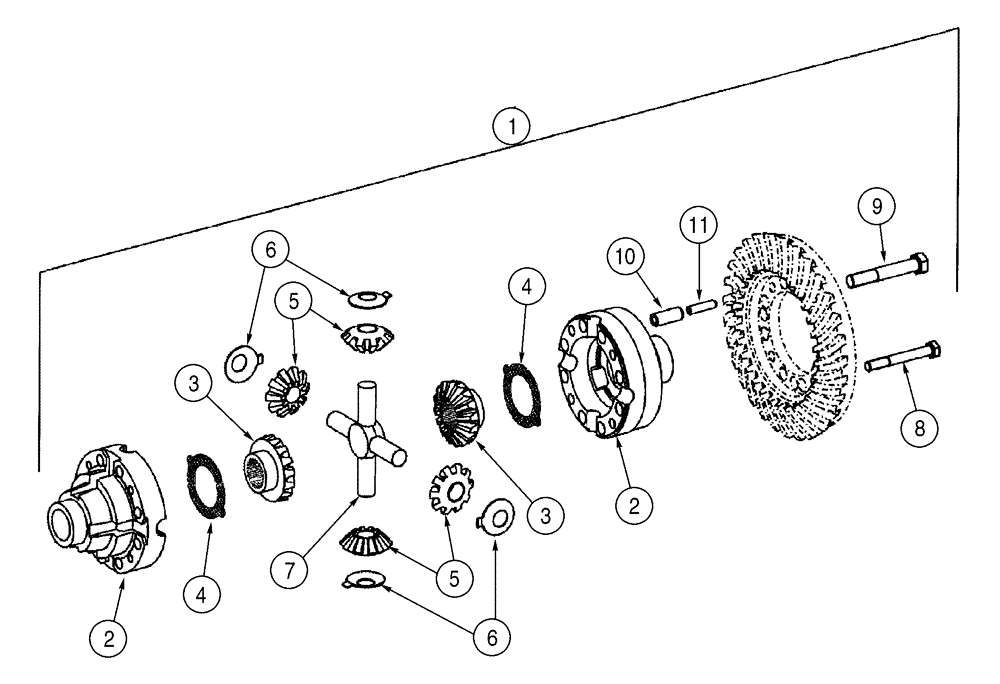

Запчасти Case 621D (06-32) - AXLE, REAR - DIFFERENTIAL (06) - POWER TRAIN

.

REF

INSTRUCTION

REPLACED PROTOTYPE PART NUMBERS WITH PRODUCTION NUMBERS

1шт.

.

OPEN DIFFERENTIAL NOT USED IN PRODUCTION, SEE FIGURE 6-33 FOR LIMITED SLIP VERSION

1шт.

.

389967A1

AXLE, REAR

AXLE REAR Open Differential; Incl. 1 - 11

1шт.

1

428622A1

DIFFERENTIAL ASSY

Open Differential

1шт.

2

445159A1

HOUSING

1шт.

3

8603716

GEAR

16T

2шт.

4

8603715

PRESSURE RING

2шт.

5

8603717

GEAR

11T

4шт.

6

8603718

THRUST WASHER

4шт.

7

8603719

SHAFT

Differential

1шт.

8

8603720

BOLT

M12 x 1,5 x 95

4шт.

9

8603721

BOLT,Hex, M16 x 1.5 x 40mm, Full Thd

M16 x 1,5 x 100

8шт.

10

8603722

PIN

16 x 40

4шт.

11

8603723

PIN

10 x 40

4шт.

12

445161A1

PLATE

Clutch Plates

1шт.

13

445172A1

SCREW

1шт.
