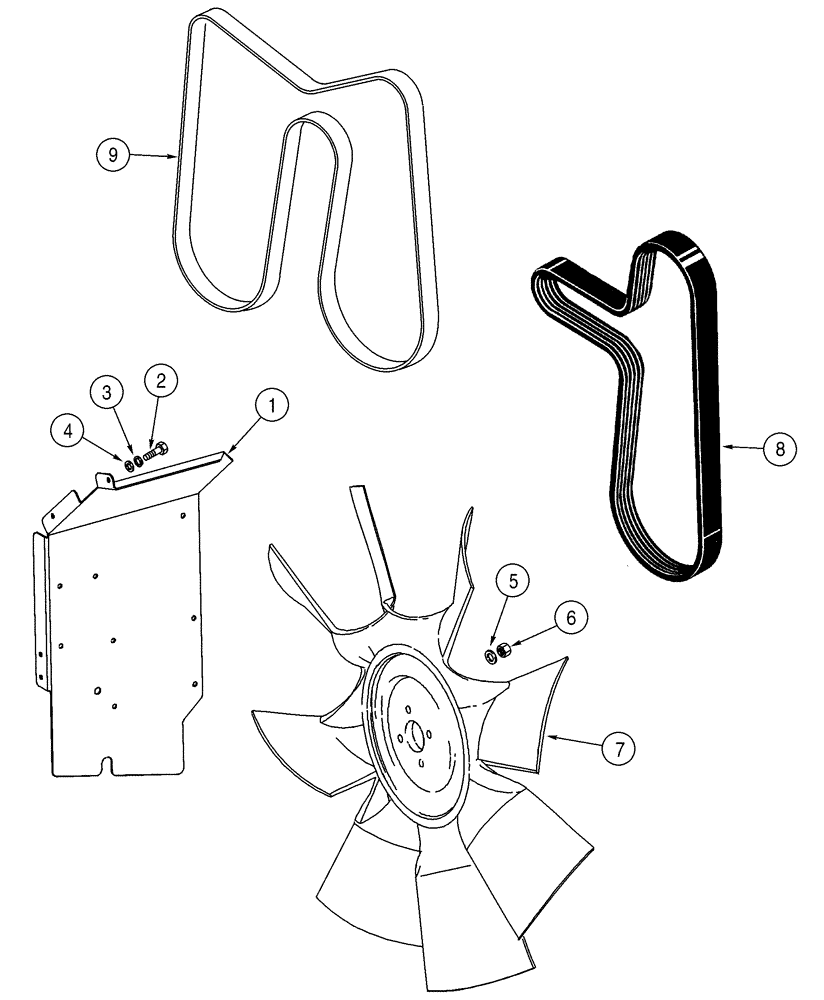

Запчасти Case 621D (02-03) - FAN - FAN BELT (02) - ENGINE

1

399708A1

GUARD

1шт.

2

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

3

892-11008

LOCK WASHER,8mm ID

4шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

5

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

6

232-2448

NUT,1/2"-20, GC

1шт.

7

371887A1

FAN

1шт.

Incl. Ref. 7A - 7B

1шт.

7a

364146A1

FAN

28 in.

1шт.

ECS Molded

1шт.

7b

368449A1

HUB

1шт.

Fan

1шт.

8

J925953

BELT,27.92 mm W x 1490.00 mm L, 8 Ribs

1шт.

Without Air Conditioning

1шт.

9

J935010

BELT,2000.00 mm L, 8 Ribs

1шт.

With Air Conditioning

1шт.
