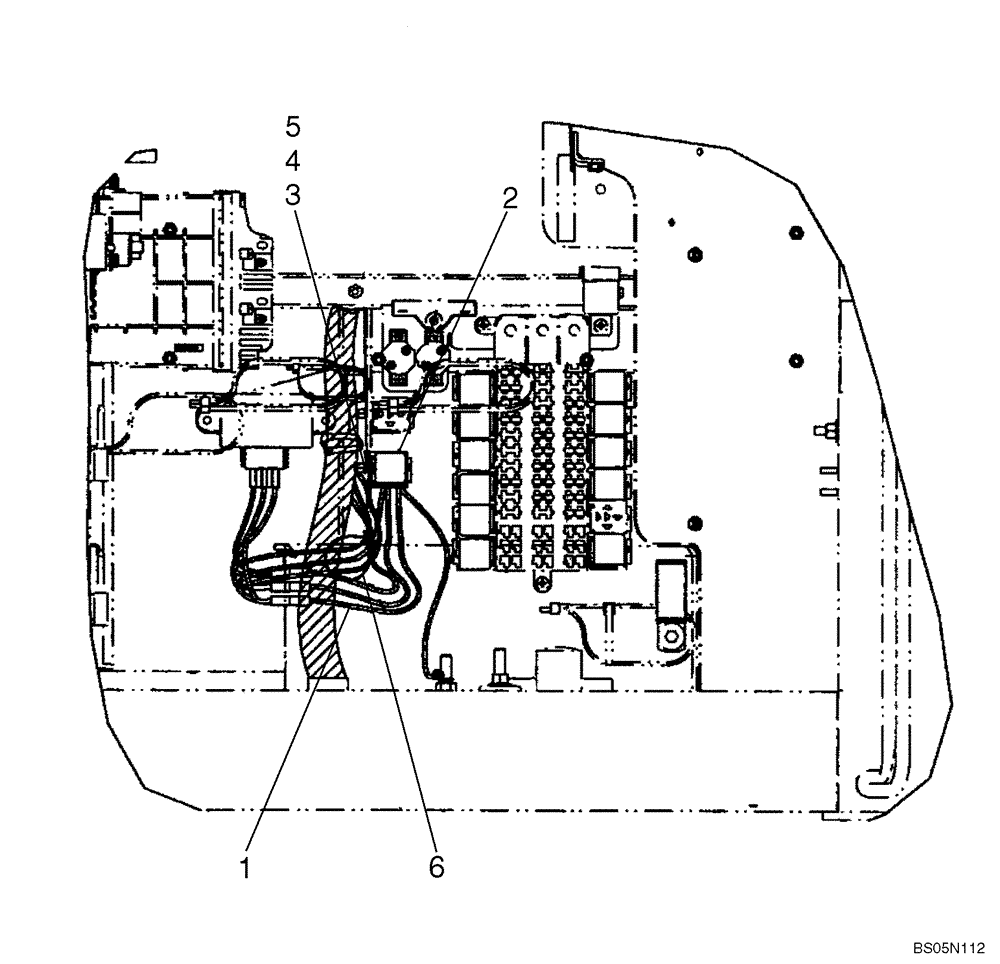

Запчасти Case 521D (04-15B) - HARNESS - GRID HEATER - RELAY PANEL (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

GRID HEATER CUTOFF

1шт.

1

87378787

RELAY

HARNESS, Grid Heater Cutoff

1шт.

2

326845A1

RELAY,24V

Bosch # 0332209204

1шт.

3

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

1шт.

4

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

5

832-10405

NUT,M5 x .8, Cl 8

4шт.

6

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.
