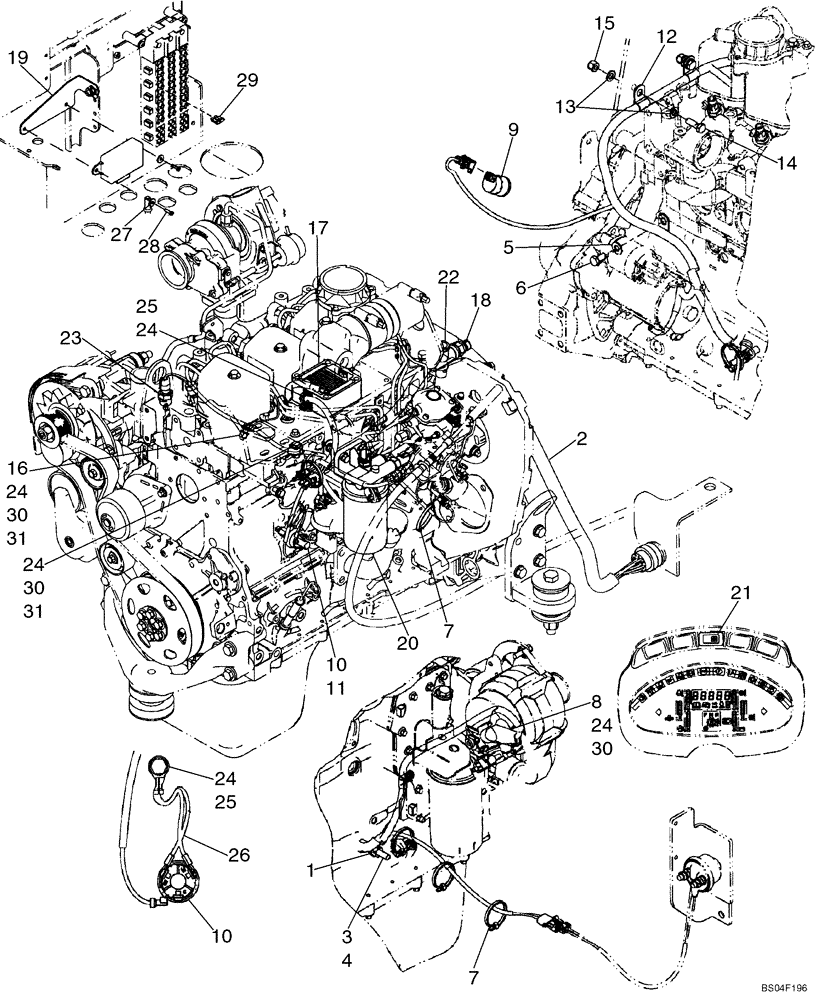

Запчасти Case 521D (04-15A) - HARNESS - ENGINE - GRID HEATER (04) - ELECTRICAL SYSTEMS

1

L127553

STUD

Brass

1шт.

2

87404983

WIRE HARNESS

Engine; With Grid Heater; Includes Clamp Part Numbers Listed Below

1шт.

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

(12.7 mm, M12 Bolt)

2шт.

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

(12.7 mm, 10.3mm)

1шт.

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

9,5 mm

1шт.

3

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

1шт.

4

L127555

NUT,Hex, 3/8" - 16

3/8; Brass

1шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

6

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

5шт.

8

399470R1

BOOT

Electrical; Replaces Electrical Boot L126713 Used On Some Models

1шт.

9

279492A1

RESTRICTION SWITCH

Air Restriction; On Air Cleaner

1шт.

10

404224A1

SENDER UNIT

SENDER Engine Oil Pressure; Includes Hardware

1шт.

11

250838A2

HYD CONNECTOR

M14; Incl. 11A

1шт.

12

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

(22.2mm; M10 Bolt)

2шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

16

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

(9.5 mm), Without Grid Heater

1шт.

17

87439536

KIT

24V; Grid Heater Kit; Incl. 17A, 17B; Replaces 87404464

1шт.

17a

J939914

UNIT HEATER

Not Illustrated; Replaced by 2831019

1шт.

17a1

2831019

HEATER,24V

Not Illustrated; Replaces J939914

1шт.

17b

J938158

GASKET

Not Illustrated

1шт.

18

87439533

KIT

Grid Heater ECU Kit; Incl. 18A, 18B; Replaces 87404464

1шт.

18a

2855670

ECU

ECU

1шт.

18b

2852157

SENSOR

Sensor

1шт.

19

87404708

MOUNTING PARTS

Grid Heater

1шт.

20

2853394

FUEL FILTER

1шт.

21

87403377

INDICATOR

Cold Start Light

1шт.

22

217-1064

TEE,1/2" - 14 Female x 1/2" - 14 Male Run

1/2 - 14 NPTF

1шт.

23

321446A1

SENSOR

Engine Coolant

1шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

9шт.

25

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

26

8501337

GROUND CABLE

1шт.

27

895-25005

WASHER,M5 x 15 x 1.6

2шт.

28

840-1416

SCREW,Pan, M4 x 16mm, Cl 4.8

2шт.

29

A149798

FUSE

5 Amp; Tan

1шт.

30

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

31

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

14

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.
