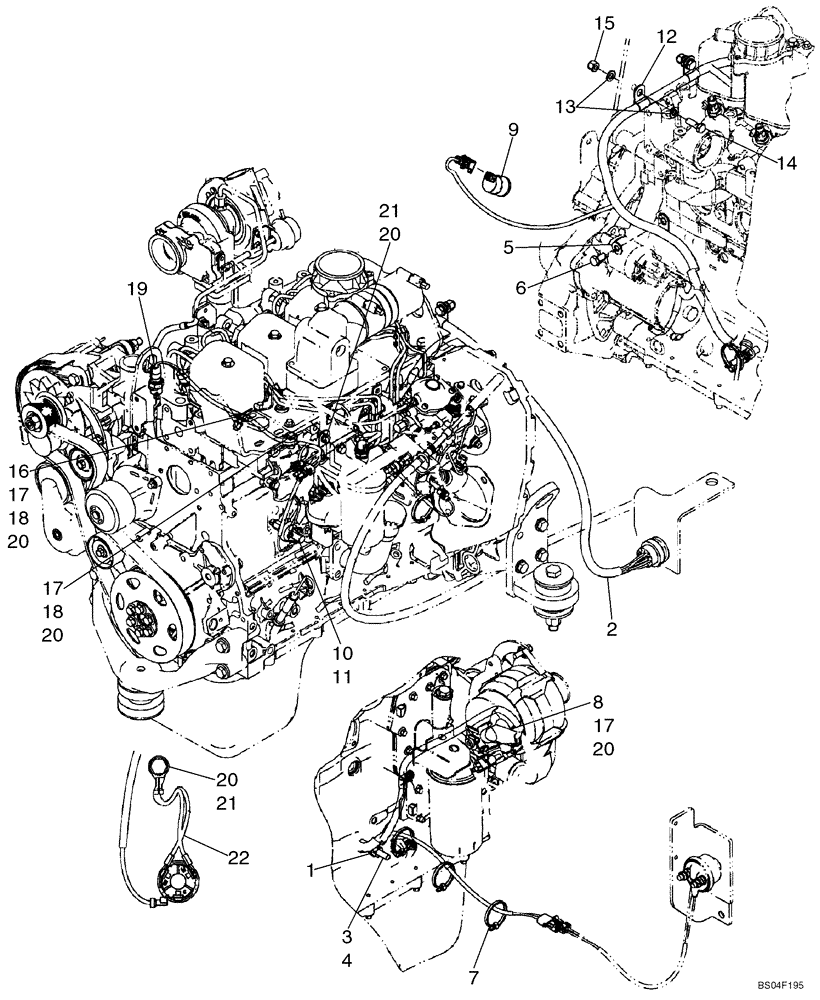

Запчасти Case 521D (04-15) - HARNESS - ENGINE (04) - ELECTRICAL SYSTEMS

1

L127553

STUD

Brass

1шт.

2

87404984

WIRE HARNESS

Engine; Without Grid Heater; Includes Clamp Part Numbers Listed Below

1шт.

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

(12.7 mm, 10.3mm)

1шт.

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

(12.7 mm, M12 Bolt)

2шт.

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

9,5 mm

1шт.

3

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

1шт.

4

L127555

NUT,Hex, 3/8" - 16

3/8; Brass

1шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

6

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

4шт.

8

399470R1

BOOT

Electrical; Replaces Electrical Boot L126713 Used On Some Models

1шт.

9

279492A1

RESTRICTION SWITCH

Air Restriction

1шт.

10

404224A1

SENDER UNIT

SENDER Engine Oil Pressure; Includes Hardware

1шт.

11

250838A2

HYD CONNECTOR

M14; Incl. 11A

1шт.

12

515-25143

CLAMP,9/16", Insul, 1/2" Bolt

14.3mm; M12 Bolt

2шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

16

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

(9.5 mm), Without Grid Heater

1шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

19

321446A1

SENSOR

Engine Cooling

1шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.

21

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

22

8501337

GROUND CABLE

1шт.

18

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

14

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.
