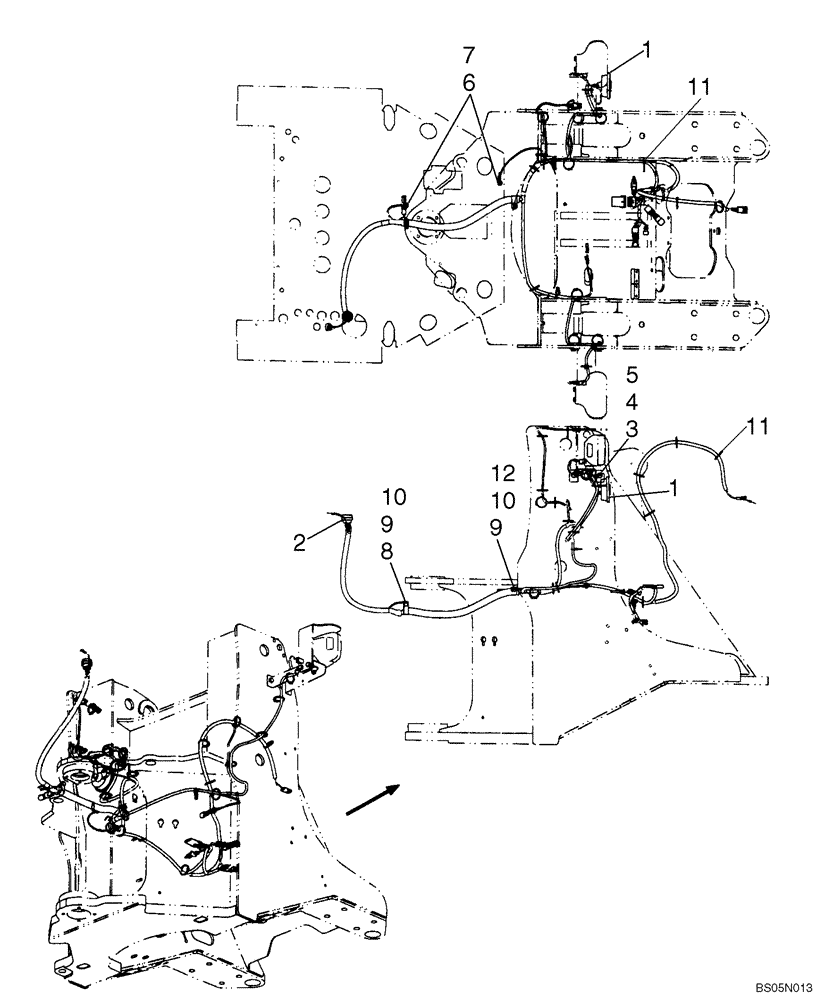

Запчасти Case 521D (04-06A) - HARNESS, FRONT (Z BAR LOADER) (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

Z-BAR LOADER; Used With Front Chassis With Dampers

1шт.

1

87382200

HORN

HORN 300 HZ

1шт.

2

87392717

WIRE HARNESS

HARNESS CHASSIS Front

1шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

6

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

2шт.

7

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5; Brass

2шт.

8

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

22шт.

12

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

1шт.
