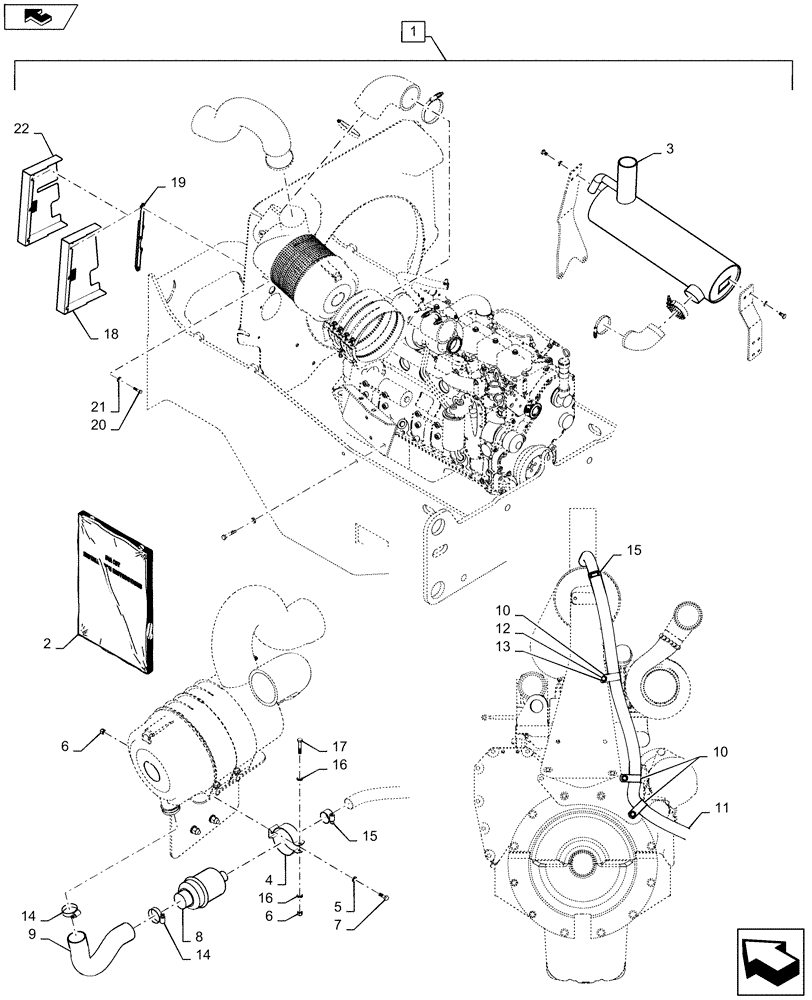

Запчасти Case 521D (88.010.01) - DIA KIT, FIELD-ASPIRATOR (88) - ACCESSORIES

1

87452698

CONSTRUCTION DIA

Kit, Field-Aspirator, Incl 2 - 22

1шт.

2

6-76510

INSTRUCTION

Sheet

1шт.

3

87451543

MUFFLER

Spark Arrestor and Aspirated

1шт.

4

90-7639T1

CLAMP

1шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

7

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

8

87433700

VALVE, CHECK

1шт.

9

87450402

HOSE,50.8mm ID x 405mm L

Air Cleaner To Check Valve

1шт.

10

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

3шт.

11

82016818

FLEXIBLE HOSE

Connector, Eng Air Cleaner

1шт.

12

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

14

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.

15

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

16

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

17

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

1шт.

18

87433574

SCREEN

Inlet

1шт.

19

87433573

ANGLE

With Screen Inlet

1шт.

20

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

3шт.

21

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

Hardened

3шт.

22

87452697

SCREEN

Inlet

1шт.
