Запчасти Case 521D (09-67) - DECALS - LATIN AMERICAN SPANISH (09) - CHASSIS

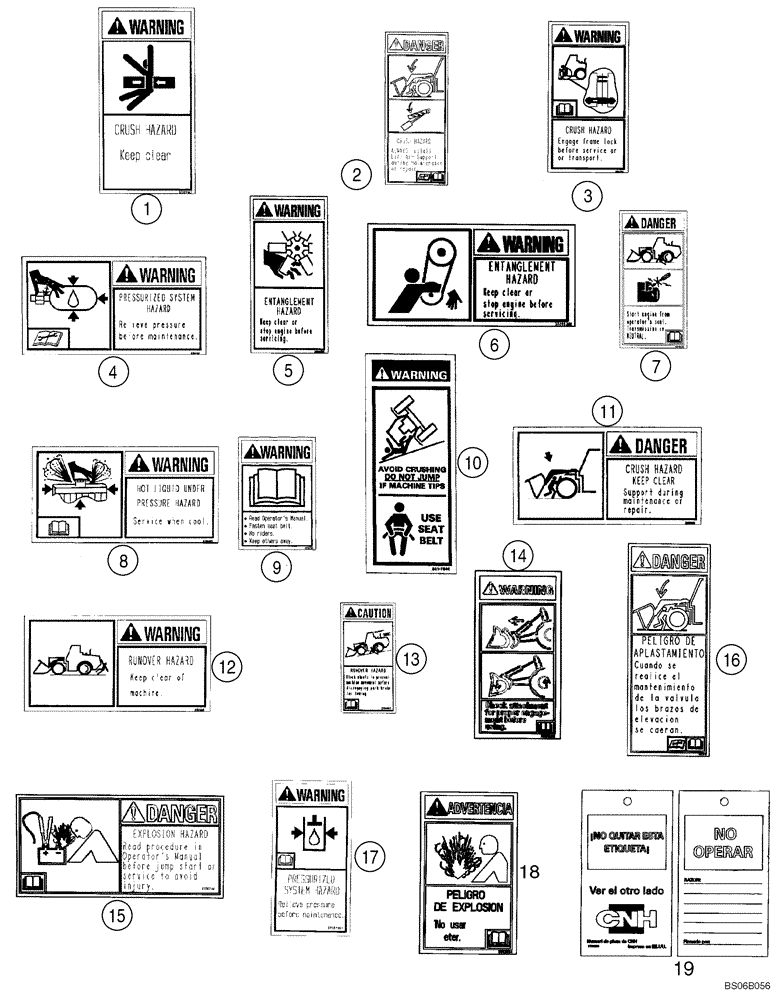

Схема запчастей Case 521D - (09-67) - DECALS - LATIN AMERICAN SPANISH (09) - CHASSIS
17
3
13
1
15
7
6
14
2
12
18
11
19
5
4
8
10
16
9

Артикул

Название

Примечание

Количество

1

334576A1

DECAL

Warning; Crush Hazard

2шт.

2

407739A2

DECAL

Lift Arm Support

1шт.

3

334573A1

DECAL

Warning; Crush Hazard

1шт.

4

334015A1

DECAL

Warning; Pressurized System Hazard

2шт.

5

334034A1

WARNING DECAL

Fan

3шт.

6

388158A1

DECAL

Belt Entanglement

1шт.

7

334567A1

DECAL

Danger; Starting In Gear

1шт.

8

334664A1

DECAL

Warning; Hot Liquid Hazard

1шт.

9

334000A2

DECAL

Warning; Read The Operator's Manual

1шт.

10

124271A1

DECAL

Caution; Do Not Jump

1шт.

11

334677A1

DECAL

Danger; Crush Hazard

1шт.

12

334688A1

DECAL

Warning; Runover Hazard

1шт.

13

334704A1

DECAL

Caution; Block Wheels

1шт.

14

364918A1

DECAL

Warning; Check Attachment

1шт.

15

412474A1

DECAL

Danger; Explosion Hazard, Battery

2шт.

16

87453134

DECAL

Danger; Crush Hazard; Replaces 412479A1

1шт.

17

336011A1

DECAL

Warning; Pressurized System Hazard

2шт.

18

8603094

WARNING DECAL

Ether Explosion

2шт.

19

87380559

TAG

DECAL Do Not Operate

1шт.

Выбрано товаров: 19
