Запчасти Case 521D (09-66) - DECALS - FRENCH CANADIAN (09) - CHASSIS

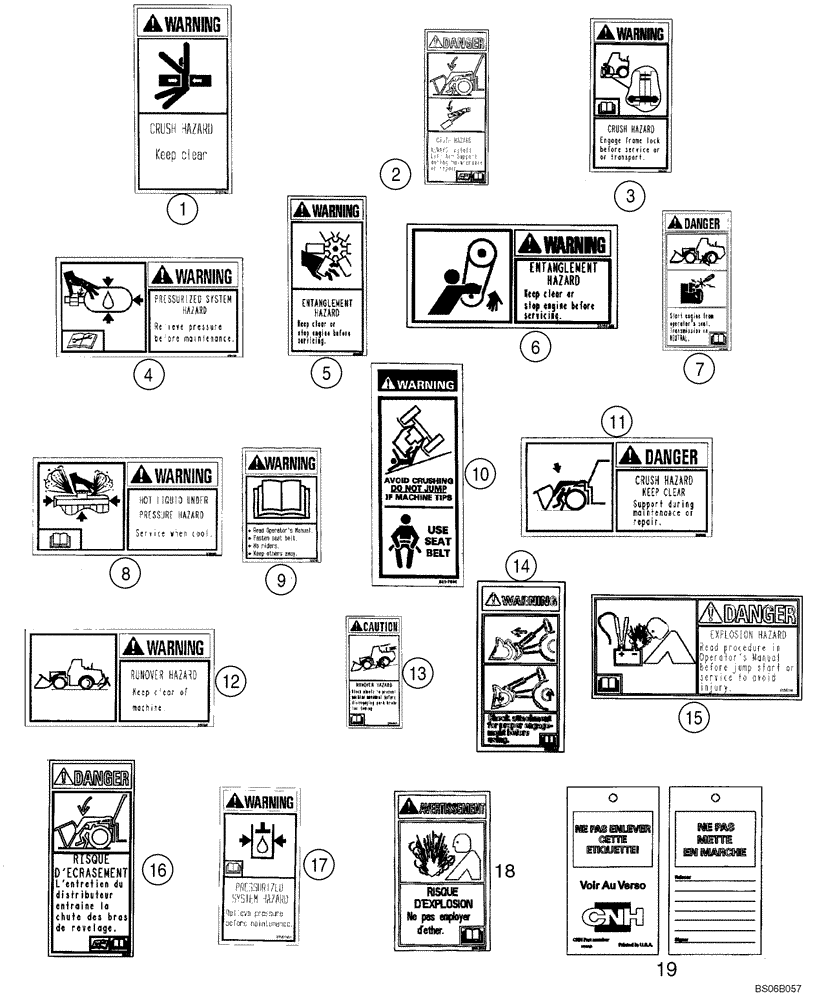

Схема запчастей Case 521D - (09-66) - DECALS - FRENCH CANADIAN (09) - CHASSIS
16
18
17
7
12
10
5
15
1
11
19
14
13
9
6
8
4
3
2

Артикул

Название

Примечание

Количество

1

334577A1

DECAL

Warning; Crush Hazard

2шт.

2

407738A2

DECAL

Lift Arm Support

1шт.

3

334574A1

DECAL

Warning; Crush Hazard

1шт.

4

334012A1

DECAL

Warning; Pressurized System Hazard

2-3шт.

5

334033A1

DECAL

Warning; Fan

3шт.

6

388157A1

DECAL

Warning; Belt Entanglement

1шт.

7

334568A1

DECAL

Danger; Starting In Gear

1шт.

8

334663A1

WARNING DECAL

Hot Liquid Hazard

1шт.

9

333999A2

DECAL

Warning; Read The Operator's Manual

1шт.

10

124269A1

DECAL

Do Not Jump

1шт.

11

334678A1

DECAL

Danger; Crush Hazard

1шт.

12

334686A1

DECAL

Warning; Runover Hazard

1шт.

13

334706A1

DECAL

Caution; Block Wheels

1шт.

14

364919A1

DECAL

Warning; Check Attachment

1шт.

15

412473A1

DECAL

Danger; Battery Explosion Hazard

2шт.

16

412478A1

DECAL

Danger; Crush Hazard

1шт.

17

336010A1

DECAL

Warning; Pressurized System Hazard

2шт.

18

8603093

WARNING DECAL

Ether Explosion; Replaces 321-6964

3шт.

19

87380558

TAG

DECAL Do Not Operate

1шт.

Выбрано товаров: 19
