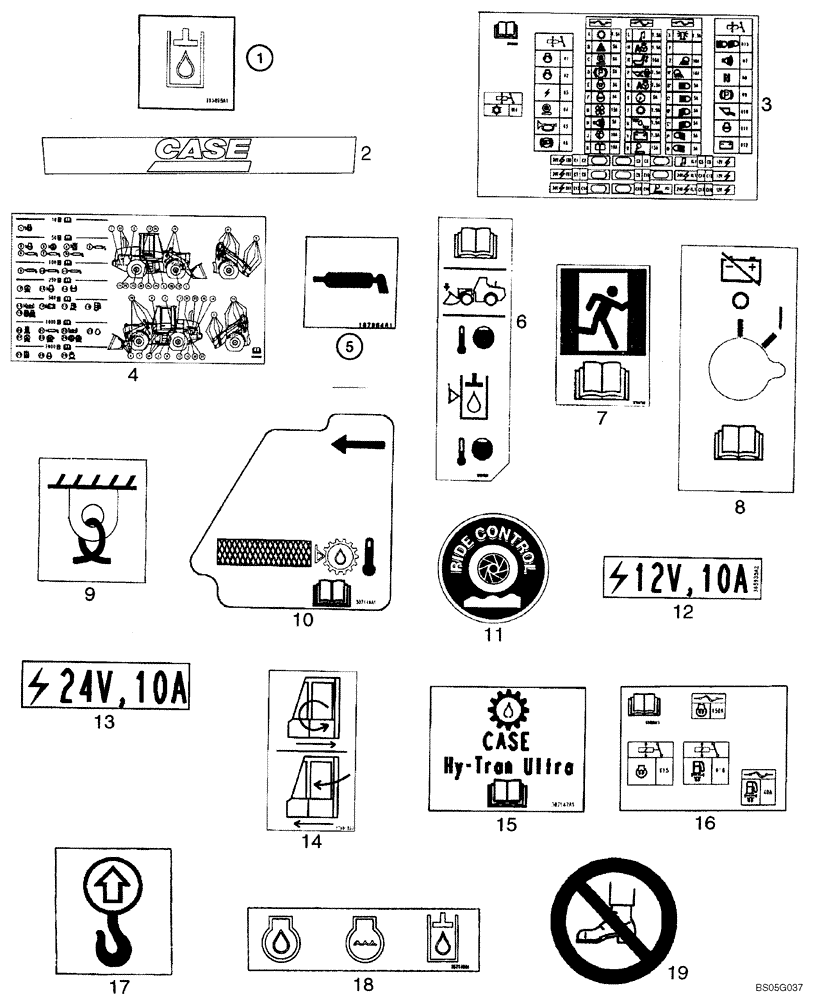

Запчасти Case 521D (09-63) - DECALS - COMMON TO MODEL (09) - CHASSIS

A59450

WARNING SIGN

Slow Moving Vehicle;Uses Following Mounting Hardware; Not Illustrated

1шт.

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

832-10406

NUT,M6 x 1, Cl 8

1шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

1

395895A1

DECAL

Hydraulic Fluid

1шт.

2

303379A1

DECAL

Visor Fritting; Canopy

1шт.

3

87408880

DECAL

Fuse Location

1шт.

4

8604615

DECAL

Maintenance Chart

1шт.

5

187864A1

DECAL

Lubrication

2шт.

6

386741A2

DECAL

Hydraulic Fluid Temperature Level

1шт.

7

329051A1

DECAL

Emergency Exit

1шт.

8

329019A1

DECAL

Battery Disconnect

1шт.

8

87450477

DECAL

Battery Disconnect; Black Background

1шт.

9

139728A1

DECAL

Tie Down

4шт.

10

387148A2

DECAL

Transmission Fluid Type

1шт.

11

304083A1

DECAL

Ride Control

2шт.

12

365935A2

DECAL

12 Volt

1шт.

13

364741A1

DECAL

24 Volt

1шт.

14

370918A2

DECAL

Fresh/Recirculated Air

1шт.

15

387147A1

DECAL

Hy-Trans Ultra

1шт.

16

87408913

DECAL

Fuse

1шт.

17

139729A1

DECAL

Lift

4шт.

18

387149A1

DECAL

Fluid Drains

1шт.

19

E134402

DECAL

No Step

1шт.

123894A1

REFLECTOR

Amber; Not Illustrated

6шт.

128661A1

REFLECTOR

6шт.

D55216

PAD,2" x 9"

2 x 9 in

1шт.
