(09-59) - COVERS - DRIVE BELT (WITH AIR CONDITIONING)

Запчасти Case 521D (09-59) - COVERS - DRIVE BELT (WITH AIR CONDITIONING) (09) - CHASSIS

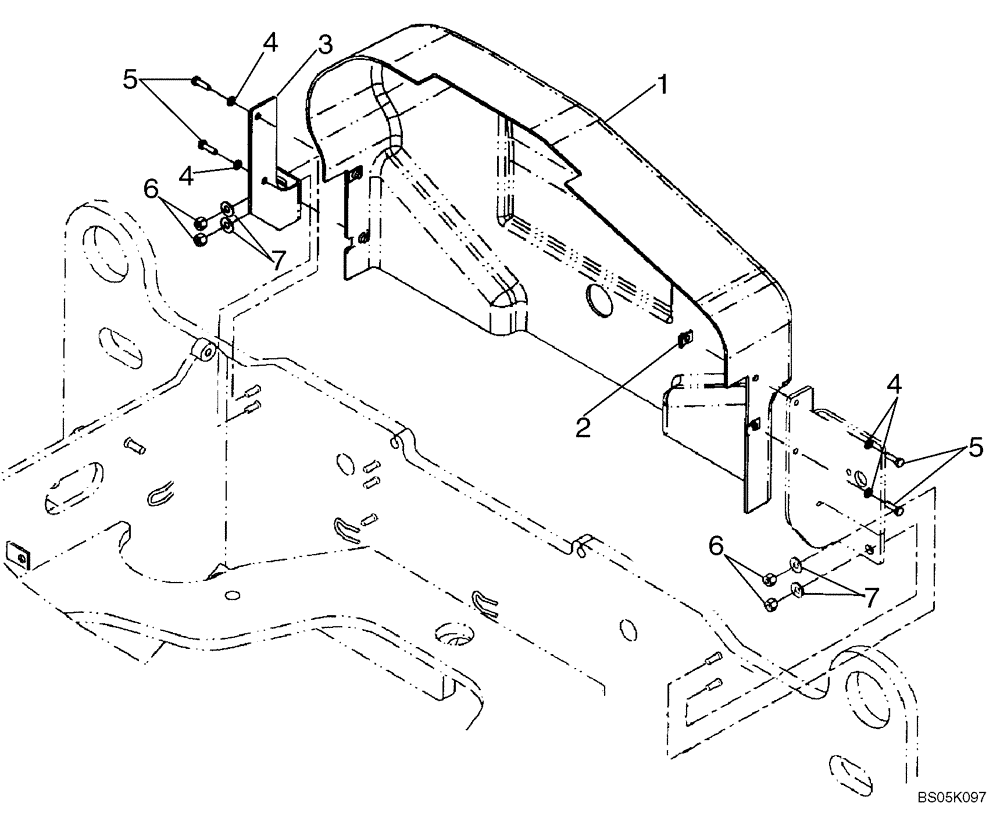

Схема запчастей Case 521D - (09-59) - COVERS - DRIVE BELT (WITH AIR CONDITIONING) (09) - CHASSIS
4
6
2
7
1
6
3
4
4
5
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

WITH AIR CONDITIONING

1шт.

1

8603017

GUARD

1шт.

2

833-40306

SPRING NUT,M6, U

4шт.

3

8605375

BRACKET

Engine Guard; Right; Two Slots; If Used

1шт.

3

87368534

BRACKET

BRACKET Engine Guard; Right; One Slot; If Used; Not Illustrated

1шт.

4

892-11006

LOCK WASHER,M6

4шт.

5

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.
