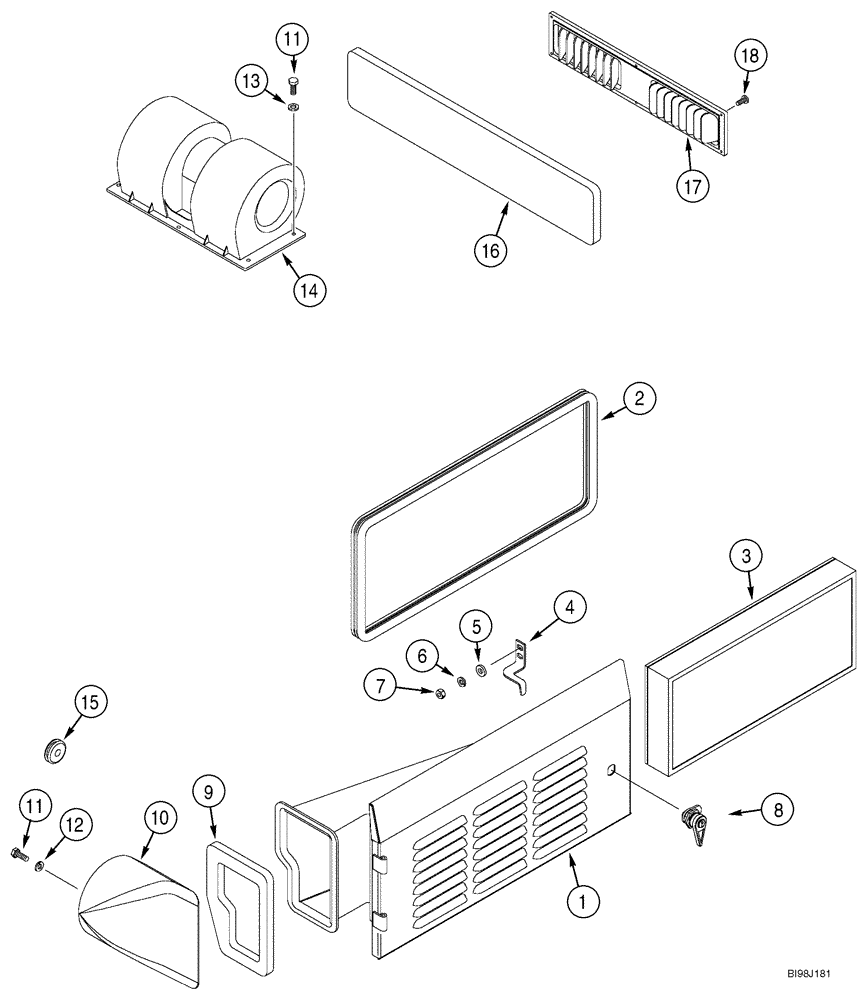

Запчасти Case 521D (09-36D) - CAB - HEATER AND AIR CONDITIONING FILTERS (09) - CHASSIS

1

228359A3

DOOR

Filter

1шт.

2

238856A2

DOOR SEAL,1786mm L

1786 mm (70-5/16 in)

1шт.

3

330014A1

CAB FILTER

Fresh Air

1шт.

4

221104A2

LATCH

Filter Door

1шт.

5

896-16006

WASHER,6.4mm ID x 14.5mm OD x 2.5mm Thk

2шт.

6

892-11006

LOCK WASHER,M6

2шт.

7

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

2шт.

8

255065A1

LATCH

Filter Door

1шт.

9

232508A1

FOAM INSULATION

Elbow To Filter Door

1шт.

10

192391A1

ELBOW

Air Supply

1шт.

11

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

8шт.

12

892-11006

LOCK WASHER,M6

4шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

14

360157A1

BLOWER ASSY.,24V - 3 Spd

Cab Air; Component Parts Not Serviced Separately

1шт.

366509A1

RESISTOR

Blower Assembly

1шт.

15

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

1шт.

16

257463A1

FILTER

Air Recirculation

1шт.

17

1331102C2

DIFFUSER

Air Recirculation; If Used

1шт.

18

239111A1

SCREW,Cross Pan Hd, M4 x 18mm

Use with Ref. 17

6шт.
