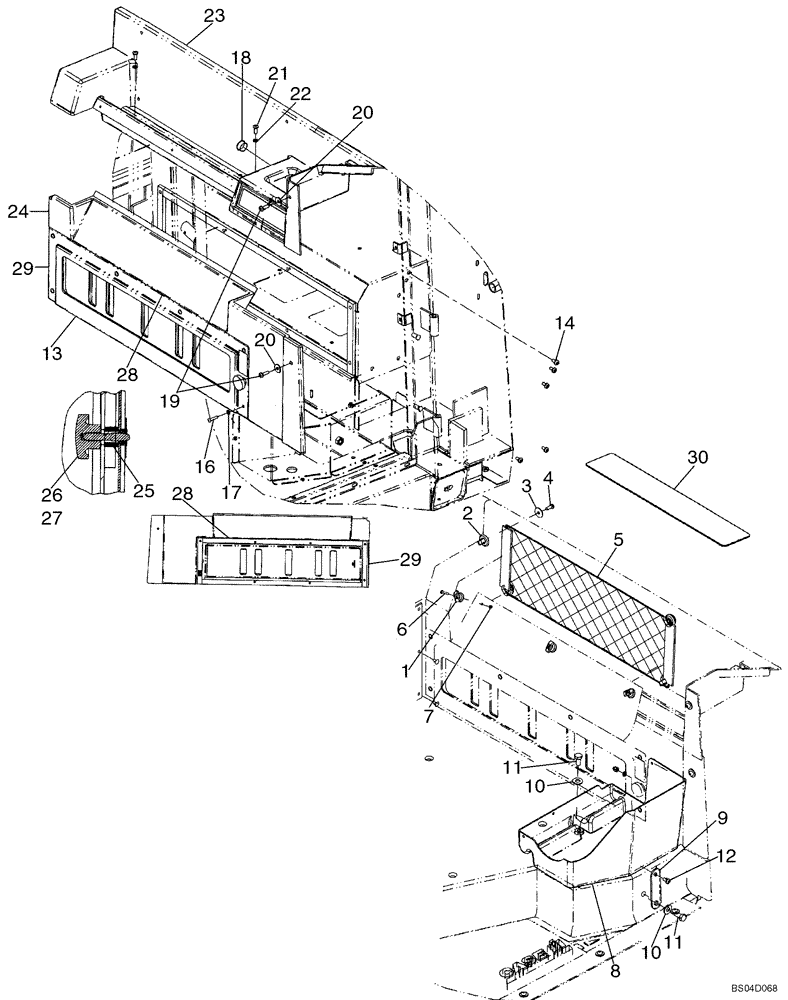

Запчасти Case 521D (09-36B) - CAB - PANELS AND STORAGE - BACK AND LEFT SIDE (09) - CHASSIS

1

443437A1

HOOK

Cargo Net

3шт.

2

359037A1

HOOK

Cargo

4шт.

3

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

4

297850A1

SCREW,Cross Pan Hd, M6 x 16

Special

4шт.

5

433309A1

NET

Cargo

1шт.

6

842-1425

SCREW,Phillips Drive, Oval HD, M4 x 25mm, Cl 4.8

3шт.

7

824-1404

NUT,M4, Cl 5

3шт.

8

433230A1

TRAY

Storage

1шт.

9

445354A1

STRAP

Storage Tray

1шт.

10

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

11

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

12

1270742C1

PREV TORQUE BOLT,Cross Rec Pan Hd, M6 x 1 x 12mm

1шт.

13

367817A1

PLATE

Louver

1шт.

14

1270742C1

PREV TORQUE BOLT,Cross Rec Pan Hd, M6 x 1 x 12mm

5шт.

15

345-101

SEALANT

Black RTV Sealant

1шт.

16

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

6шт.

17

195-81029

WASHER,#10

(7/32 x 7/16 x 1/16")

6шт.

18

353-410

PLUG,Dome, .875" hole, Nylon

1шт.

19

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

Special

2шт.

20

1990502C1

WASHER

1/4 x 13/16 x 1/16 in

2шт.

21

297850A1

SCREW,Cross Pan Hd, M6 x 16

Special

2шт.

22

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6.6 x 12.0 x 1.6in

2шт.

23

399192A2

CONTAINER

Rear Storage

1шт.

24

399188A1

COVER

Rear

1шт.

25

374646A1

SPACER

1шт.

26

60-4136T1

KNOB

1шт.

27

60-4135T1

STUD,1/4" - 20 x 1-7/16"

1шт.

28

327131A1

FOAM INSULATION,20mm W x 685.1mm L x 8.5mm Thk

2шт.

29

327132A1

FOAM INSULATION,20mm W x 196mm L x 8.5mm Thk

2шт.

30

257461A1

PAD

Rear Storage

1шт.
