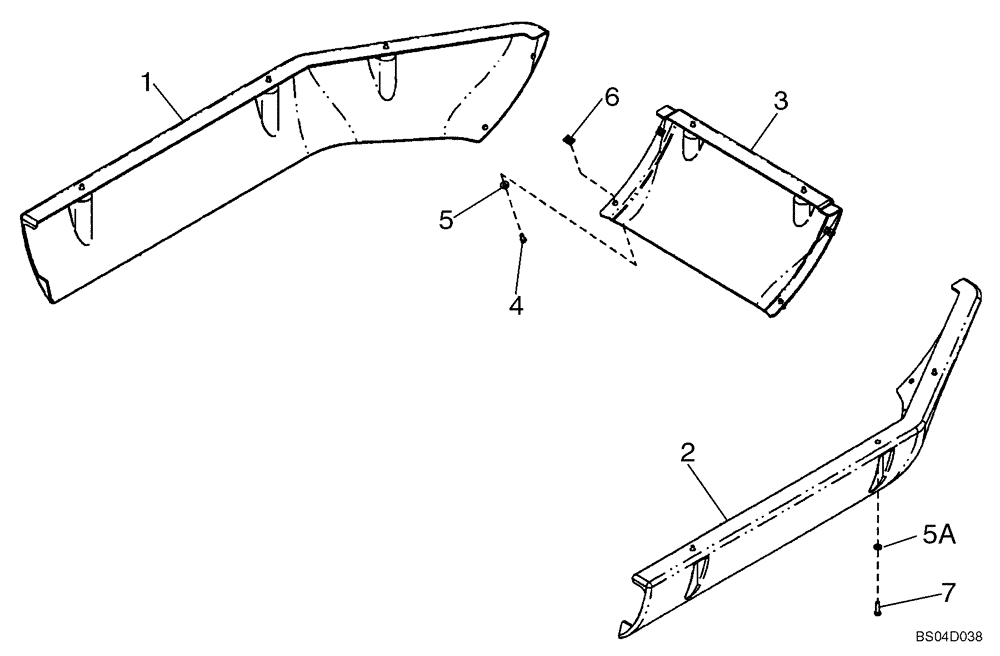

Запчасти Case 521D (09-35) - COVERS - CAB AND CANOPY, LOWER (09) - CHASSIS

1

8501323

SKIRT

Left Hand; Tan

1шт.

1

8602515

SKIRT

Left Hand; Gray

1шт.

2

8501324

SKIRT

Right Hand; Tan

1шт.

2

8602514

SKIRT

Right Hand; Gray

1шт.

3

8501325

SKIRT

Center; Tan

1шт.

3

8602513

SKIRT

Center; Gray

1шт.

4

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

5

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

5a

496-41041

WASHER,13/32" x 1 1/8" x .134"

8шт.

6

833-40308

SPRING NUT,M8, U

4шт.

7

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

8шт.
