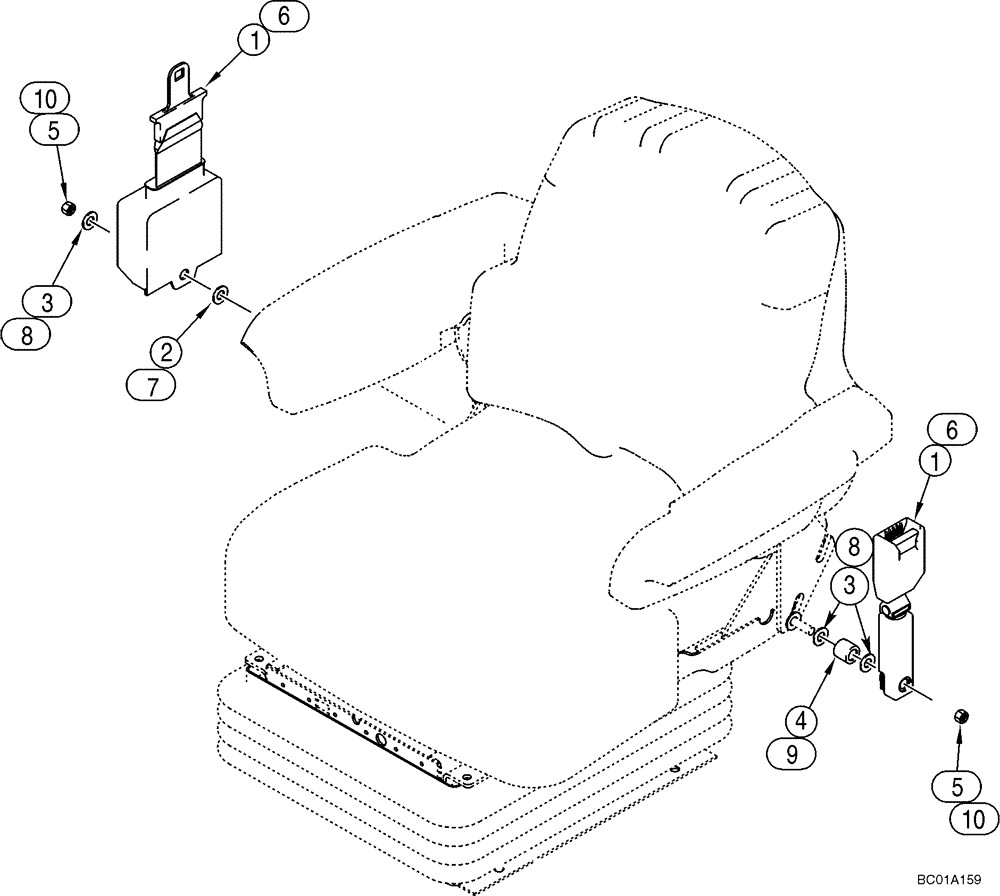

Запчасти Case 521D (09-29) - SEAT - SEAT BELTS (09) - CHASSIS

REF

INSTRUCTION

EUROPE ONLY

1шт.

REF

INSTRUCTION

51 mm (2 Inch) WIDE RETRACTABLE SEAT BELT

1шт.

1

345370A1

SAFETY BELT ,50.8mm W x 1219.2mm L

If Equipped; Incl. 2

1шт.

2

NSS

NOT SOLD SEPARAT

Washer

1шт.

3

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16")

3шт.

4

L58752

TUBE SPACER,13.53mm ID x 19.05mm OD x 18.28mm L

1шт.

5

231-2447

LOCK NUT,7/16"-14, GB

2шт.

REF

INSTRUCTION

76 mm (3 Inch) WIDE RETRACTABLE SEAT BELT; IF USED

1шт.

6

345371A1

SAFETY BELT ,75.00 mm W

If Equipped; Incl. 7; If Used

1шт.

7

NSS

NOT SOLD SEPARAT

Washer; If Used

1шт.

8

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16"); If used

3шт.

9

L58752

TUBE SPACER,13.53mm ID x 19.05mm OD x 18.28mm L

If Used

1шт.

10

231-2447

LOCK NUT,7/16"-14, GB

If Used

2шт.
