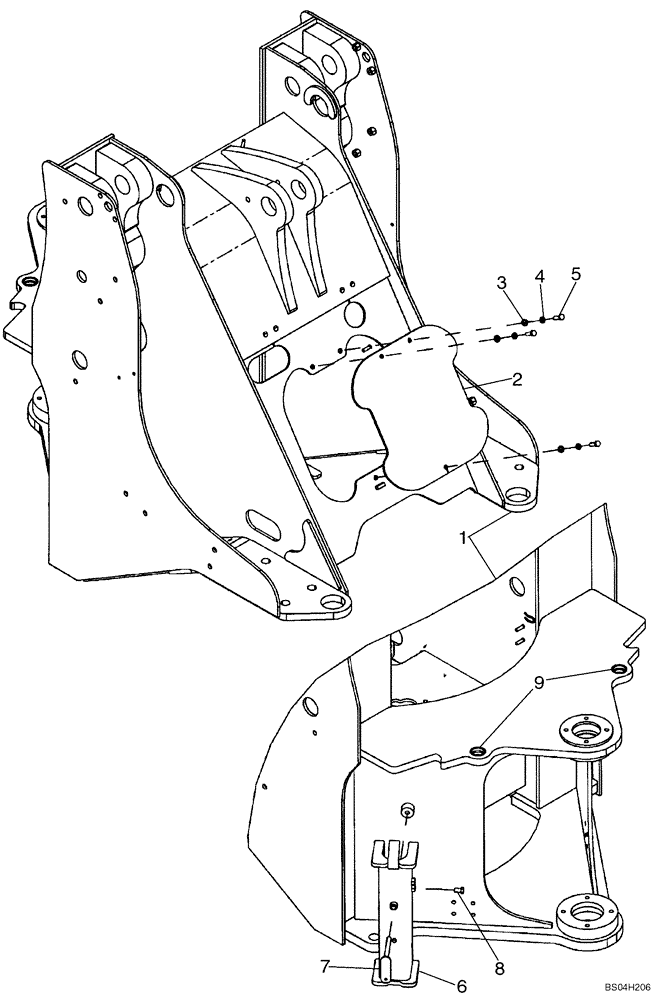

Запчасти Case 521D (09-26) - FRAME, FRONT (Z BAR LOADER) (09) - CHASSIS

REF

INSTRUCTION

Z-BAR LOADER

1шт.

1

86990163

CHASSIS

Front Chassis

1шт.

2

361079A1

COVER

Valve

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

4

892-11010

LOCK WASHER,M10

3шт.

5

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.

6

380602A1

BUSHING

2шт.

7

406347A1

SUPPORT ASSY.

1шт.

8

406390A1

HANDLE

1шт.

9

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

1шт.
