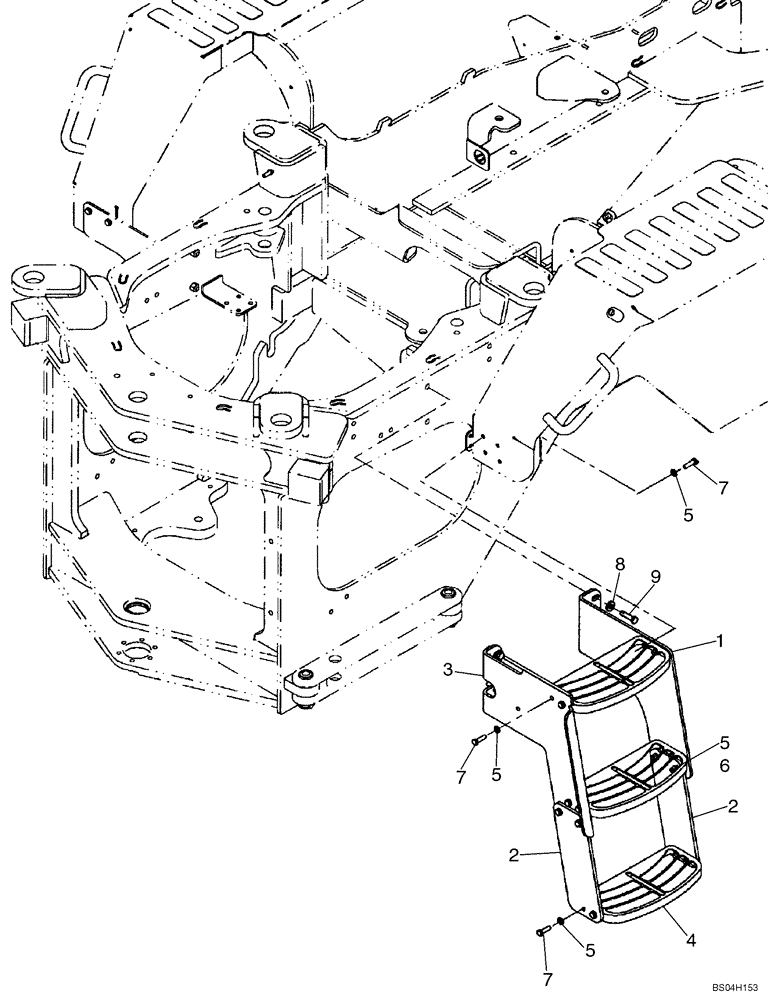

Запчасти Case 521D (09-24A) - FENDERS, REAR - STEPS - IF USED (09) - CHASSIS

REF

INSTRUCTION

LEFT HAND SIDE

1шт.

1

87433917

BRACKET

LH Support; Rear; Case Power Tan

1шт.

2

87434096

STRAP

2шт.

3

87433916

BRACKET

LH Support; Front; Case Power Tan

1шт.

4

87434472

STEP

Stamped Steel

3шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

32шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

16шт.

7

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

16шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

9

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.
