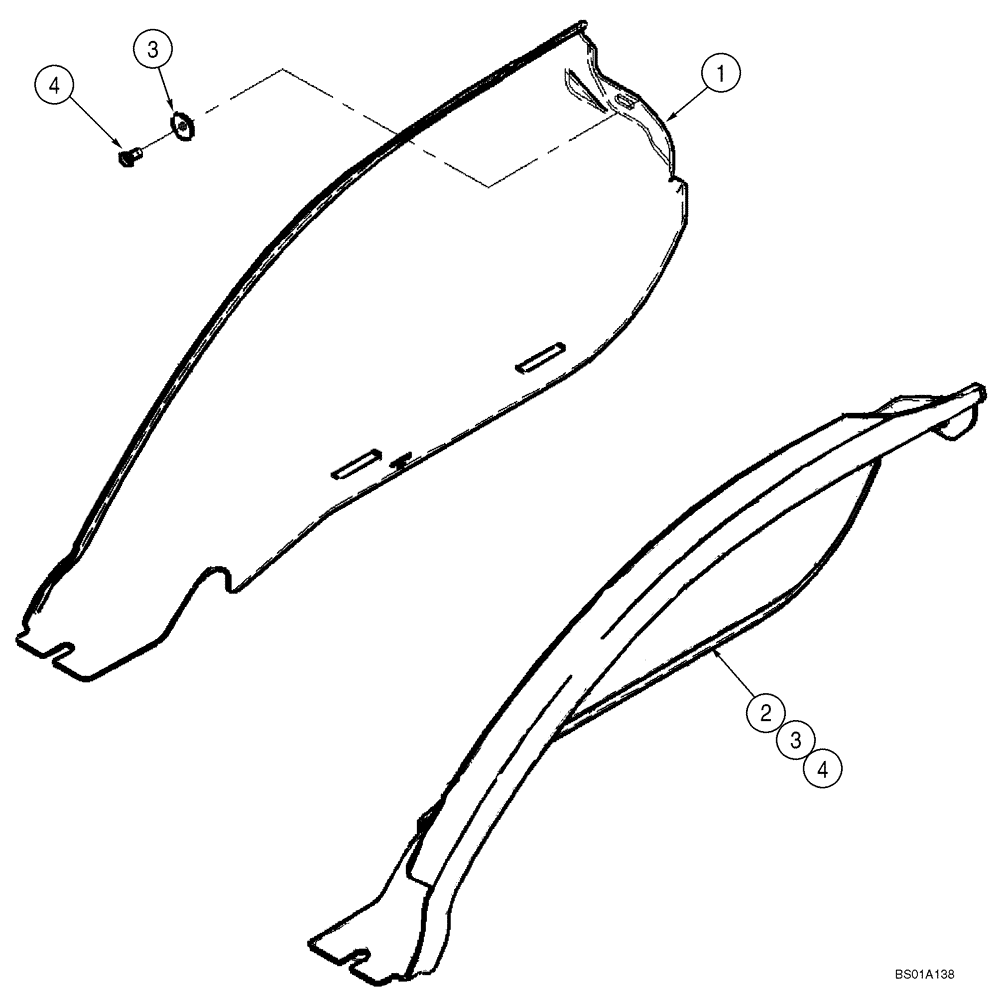

Запчасти Case 521D (09-21) - FENDERS, REAR (09) - CHASSIS

REF

INSTRUCTION

WHEEL WELLS

1шт.

1

409497A2

FENDER

Left Side; Gray

1шт.

1

403154A3

FENDER

Left Side; Power Tan

1шт.

2

409498A2

FENDER

Right Side; Gray

1шт.

2

403155A3

FENDER

Right Side; Power Tan

1шт.

3

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

2шт.

4

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.
