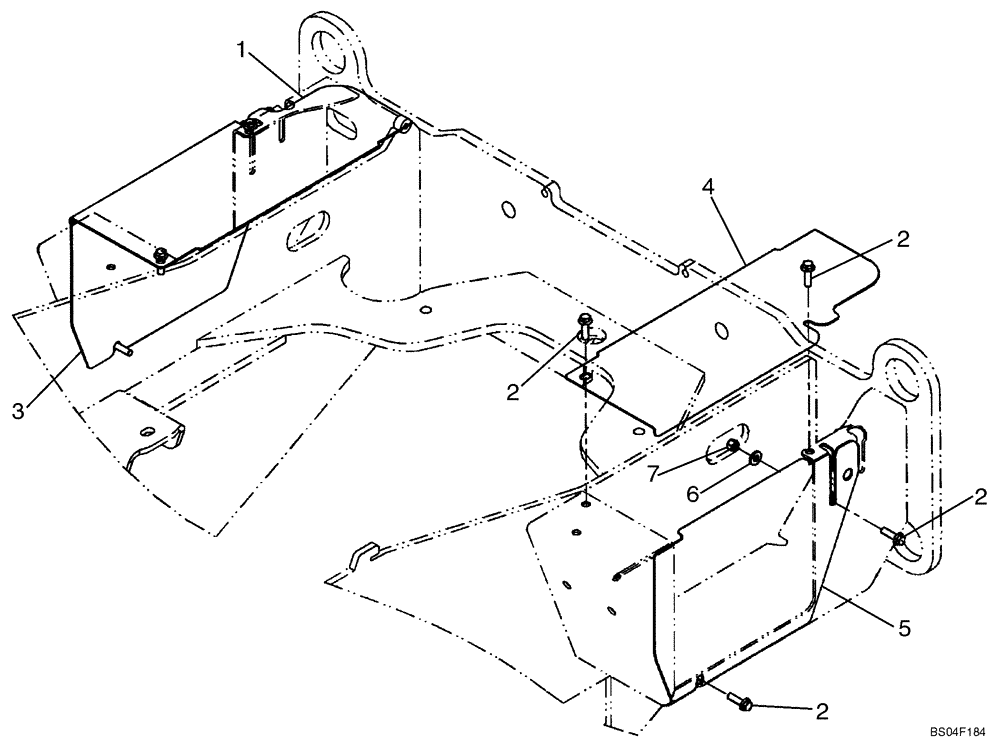

Запчасти Case 521D (09-18B) - BATTERY COVERS - IF USED (09) - CHASSIS

REF

INSTRUCTION

TIER II - WIDE FENDER OPTION

1шт.

1

87447059

COVER

Battery Box; RightSide

1шт.

2

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

8шт.

3

87450697

COVER

Battery Cover; Right Side

1шт.

4

87447058

COVER

Battery Cover; Left Side

1шт.

5

87450696

COVER

Battery Cover; Left Side

1шт.

6

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3mm

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
