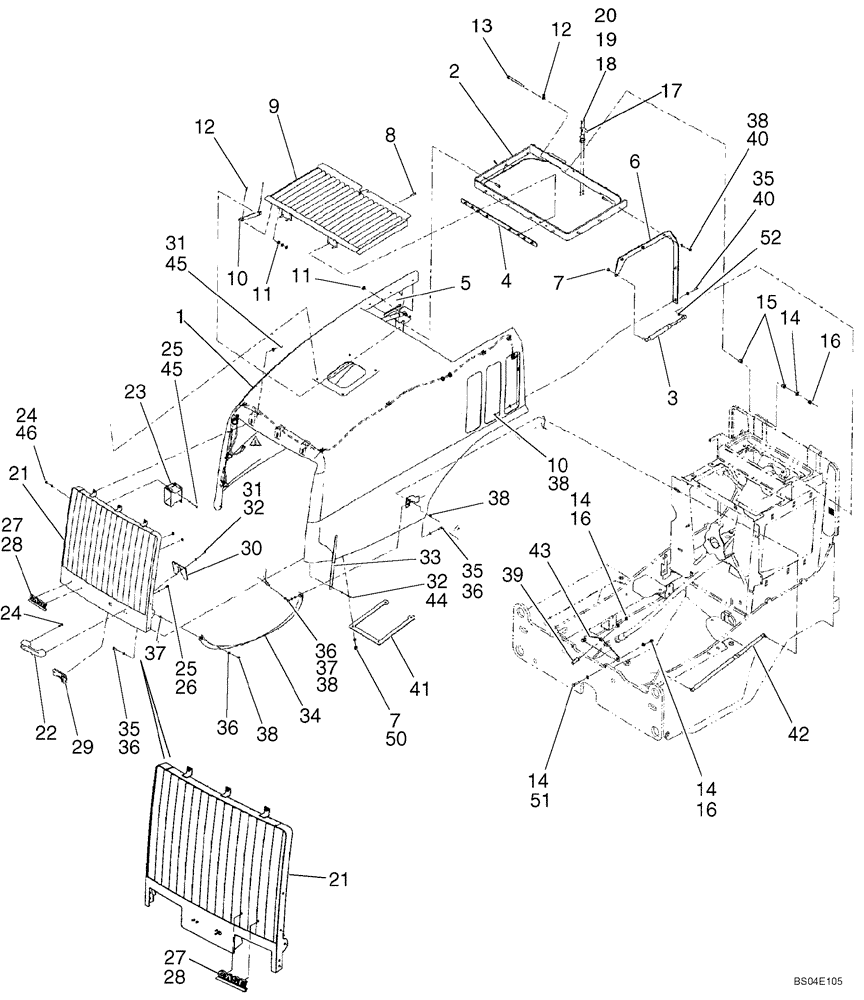

Запчасти Case 521D (09-16) - HOOD (09) - CHASSIS

1

384268A7

HOOD

Tan; Replaced By 8603073

1шт.

1

8603073

HOOD

Tan/CE Gray; Replaced By 87432250

1шт.

1

87432250

HOOD

Tan/CE Gray

1шт.

2

8603198

SUPPORT ASSY.

Hood

1шт.

3

361456A1

GAS STRUT

2шт.

4

382712A2

PLATE ASSY.

1шт.

5

390865A2

PLATE ASSY.

Left Hand

1шт.

6

390867A3

PLATE ASSY.

Right Hand

1шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

8

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

14шт.

9

8603801

SCREEN

Top

1шт.

10

390606A2

BAR

1шт.

11

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.

12

733-3220

COTTER PIN,M3.2 x 20

2шт.

13

827-12150

BOLT,Hex, M12 x 1.75 x 150mm, Cl 10.9

2шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

9шт.

15

382495A1

BUSHING

4шт.

16

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

17

384774A1

LATCH

1шт.

18

864-5016

HEX SOC SCREW,M5 x 16mm, Cl 8.8

2шт.

19

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

20

824-1405

NUT,M5, Cl 5

2шт.

21

446096A1

GRILLE

Rear; If Used

1шт.

21a

87445513

GRILLE

Grille; With Light Cutouts; If Used

1шт.

22

60-7083T1

HANDLE

1шт.

23

D121972

ALARM

Backup

1шт.

24

426-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

1шт.

25

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

If Used

8-12шт.

25

495-21031

WASHER,1/4"

312 x ,734 x ,065; If Used

4шт.

26

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

4шт.

27

186989A1

EMBLEM

1шт.

28

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

29

366176A2

LATCH

Hood

1шт.

30

87445869

PLASTIC

Correction; Replaces 409274A1; If Used

1шт.

31

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

32

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

10шт.

33

444931A1

PLATE

Backing; Rear Grille

2шт.

34

407198A1

STRAP

Hood Pull

1шт.

35

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

36

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

37

408460A1

SPACER

No Longer Used

2шт.

38

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

39

301081A1

BOLT

If Used

1шт.

39

87426927

BOLT,Hex Wshr, M12 x 1.75 x 85mm

Hood Striker

1шт.

40

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

41

408196A1

PLATE

1шт.

42

398767A1

GAS STRUT

1шт.

43

87451013

PLATE

Striker Mount; Replaces 86992361

1шт.

44

892-1006

LOCK WASHER,M6

6шт.

45

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

46

832-10406

NUT,M6 x 1, Cl 8

6шт.

50

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

51

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

52

892-11010

LOCK WASHER,M10

2шт.
