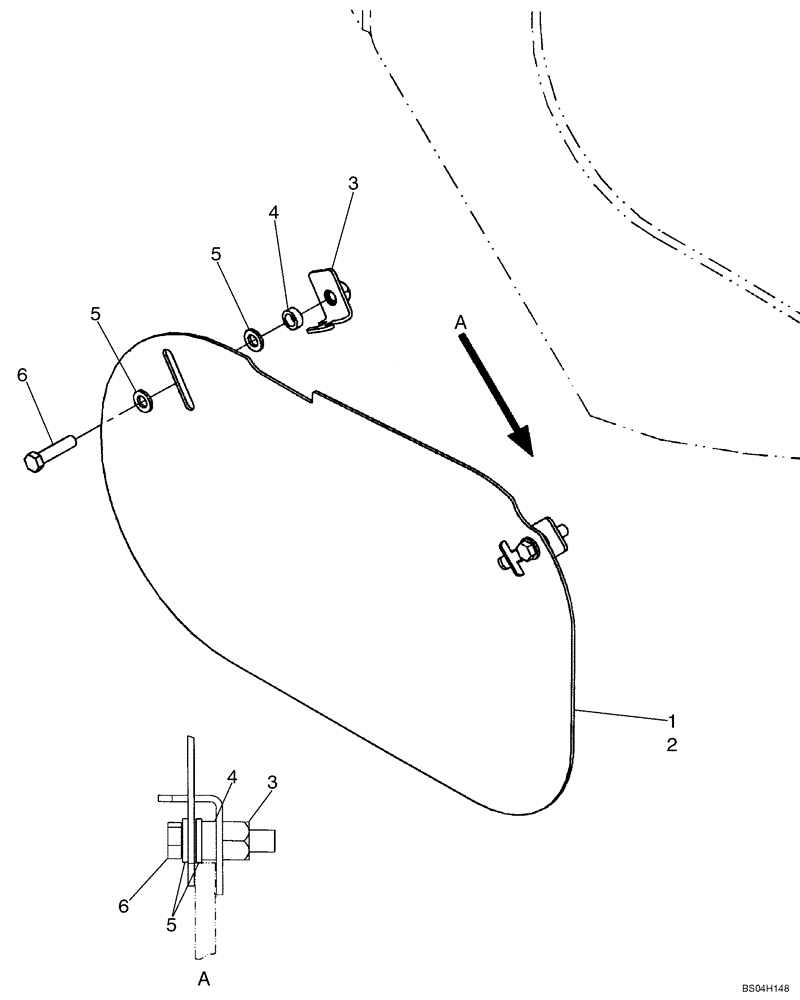

Запчасти Case 521D (09-14) - FRAME, REAR - COVERS (09) - CHASSIS

1

412485A1

COVER

Left

1шт.

1

87426988

COVER

Left; If Used; Replaces 412485A1

1шт.

1

87366468

COVER

Left; If Used; Channel Support Is Notched, Obsolete, Use 87543746

1шт.

1

87543746

COVER

If Used, Replaces 87366468

1шт.

2

412486A1

COVER

Right

1шт.

2

87366469

COVER

Right; If Used; Channel Support Is Notched

1шт.

3

87404138

CLAMP

4шт.

4

D35859

SPACER

4шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

6

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.
