Запчасти Case 521D (09-12D) - CHASSIS - REAR PIVOT ASN JEE0140242 (09) - CHASSIS

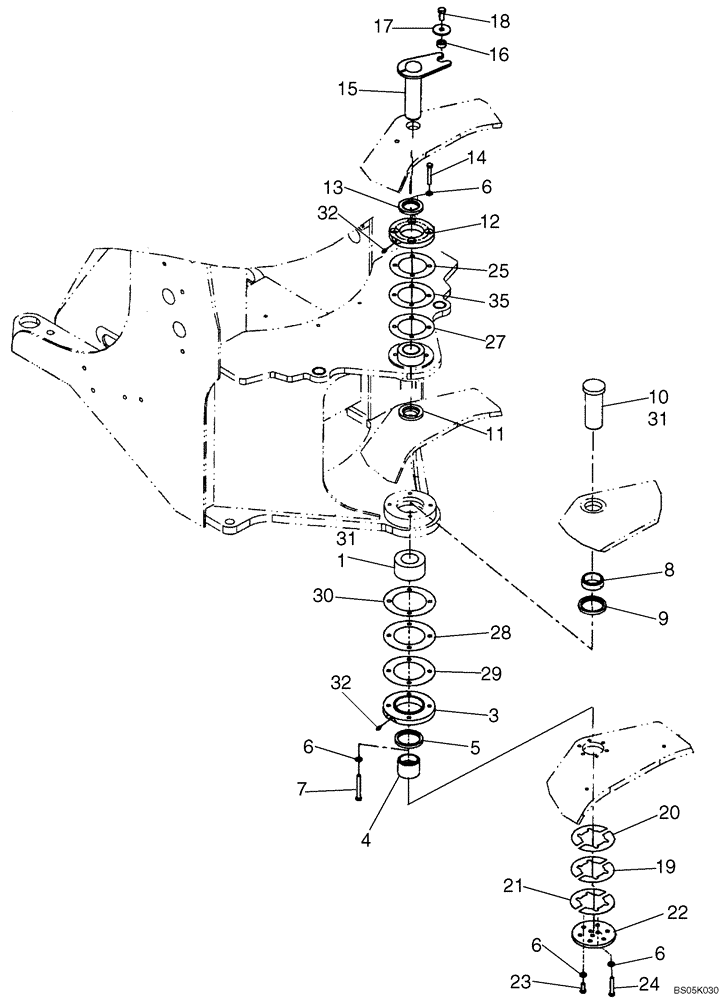

Схема запчастей Case 521D - (09-12D) - CHASSIS - REAR PIVOT ASN JEE0140242 (09) - CHASSIS
11
4
12
3
28
8
6
25
30
23
32
27
18
31
7
6
10
13
35
31
22
5
1
9
6
17
29
6
19
32
15
21
14
16
24
20

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Larger Pivot Bearings With Longer Pins And Different Seals; Retainers

1шт.

1

L125006

BEARING ASSY,63.5mm ID x 112.71mm OD x 60.33mm W

Lower Pivot

1шт.

2

391276A1

TAPERED BEARING,57.15mm ID x 96.84mm OD x 42.59mm W

Upper Pivot

1шт.

3

87365679

RETAINER

Retainer; Lower Pivot

1шт.

4

87613420

SPACER,63.54mm ID x 79.4mm OD x 62.47mm L

SPACER, Replaces 356199A1

1шт.

5

356210A1

SEAL

Lower; Lower Pivot

1шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

17шт.

7

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

4шт.

8

87623437

SPACER,63.55mm ID x 79.4mm OD x 29.5mm L

Lower Pivot Bearing; Replaces 432766A1

1шт.

9

356187A1

SEAL

Upper; Lower Articulation Plate

1шт.

10

87365684

PIN,63.48mm OD x 182mm L

PIN Lower Pivot

1шт.

11

391278A1

SEAL

Upper Articulation Plate

1шт.

12

391280A1

RETAINER

Upper Pivot

1шт.

13

391281A1

SEAL

Upper Articulation Plate

1шт.

14

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

15

87369336

PIN,57.14mm OD x 230mm L

PIN Upper Pivot

1шт.

16

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

1шт.

17

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

1шт.

18

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

1шт.

19

L118980

SHIM,90mm ID x 160mm OD x 0.28mm Thk

(.010") One half; Lower plate

2шт.

20

L118983

SHIM,90mm ID x 160mm OD x 0.11mm Thk

(.004") One half; Lower plate

2шт.

21

L118982

SHIM,90mm ID x 160mm OD x 0.54mm Thk

(.020") One half; Lower plate

2шт.

22

L128375

PLATE

Lower Pin, Replaces 362089A1

1шт.

23

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

24

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

3шт.

25

L118987

SHIM,0.1mm Thk

(.004") Upper pivot

1шт.

26

L118986

SHIM,0.5mm Thk

(.020") Upper pivot

1шт.

27

L119202

SHIM,0.25mm Thk

(.010") Upper pivot

1шт.

28

356198A1

SHIM,114mm ID x 190mm OD x 0.50mm Thk

0,50 mm (0,020 in); Lower Pivot

1шт.

29

356197A1

SHIM

0,25 mm (0,010 in); Lower Pivot

1шт.

30

356191A1

SHIM

0,10 mm (0,004 in); Lower Pivot

1шт.

31

331-58

LUBRICANT

#2 Moly Disulfide Grease

1шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.
