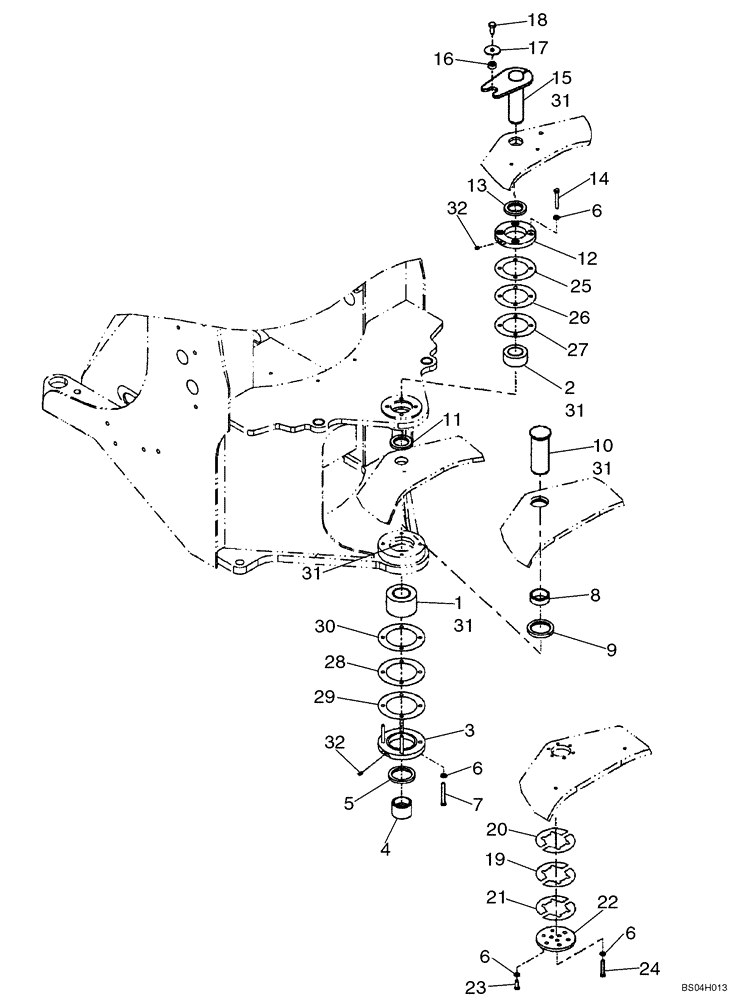

Запчасти Case 521D (09-12C) - CHASSIS - REAR PIVOT BSN JEE0140243 (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
1шт.
1
L125006
BEARING ASSY,63.5mm ID x 112.71mm OD x 60.33mm W
Lower Pivot
1шт.
2
356194A2
TAPERED BEARING,50.8mm ID x 88.9mm OD x 41.86mm W
1шт.
3
356192A1
RETAINER
Lower Pivot
1шт.
4
87613420
SPACER,63.54mm ID x 79.4mm OD x 62.47mm L
SPACER, Replaces 356199A1
1шт.
5
356210A1
SEAL
Lower; Lower Pivot
1шт.
6
896-11012
WASHER,13.5mm ID x 24mm OD x 3mm Thk
17шт.
7
827-12100
BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9
4шт.
8
356200A1
SPACER
Upper; Lower Pivot Bearing
1шт.
9
356187A1
SEAL
Upper; Lower Articulation Plate
1шт.
10
356201A1
PIN
Lower Pivot
1шт.
11
356209A1
SEAL
Lower; Upper Articulation Plate
1шт.
12
356193A2
RETAINER
Upper Pivot
1шт.
13
356186A1
SEAL
Upper; Upper Articulation Plate
1шт.
14
827-12080
BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9
4шт.
15
87434084
HEADED PIN
Upper Pivot
1шт.
16
L125100
SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk
1шт.
18
627-16035
BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd
1шт.
19
L118980
SHIM,90mm ID x 160mm OD x 0.28mm Thk
(.010") One half; Lower plate
2шт.
20
L118983
SHIM,90mm ID x 160mm OD x 0.11mm Thk
(.004") One half; Lower plate
2шт.
21
L118982
SHIM,90mm ID x 160mm OD x 0.54mm Thk
(.020") One half; Lower plate
2шт.
22
L128375
PLATE
Lower Pin, Replaces 362089A1
1шт.
23
627-12030
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
6шт.
24
827-12070
BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9
3шт.
25
L118987
SHIM,0.1mm Thk
(.004") Upper pivot
1шт.
26
L118986
SHIM,0.5mm Thk
(.020") Upper pivot
1шт.
27
L119202
SHIM,0.25mm Thk
(.010") Upper pivot
1шт.
28
356198A1
SHIM,114mm ID x 190mm OD x 0.50mm Thk
0,50 mm (0,020 in); Lower Pivot
1шт.
29
356197A1
SHIM
0,25 mm (0,010 in); Lower Pivot
1шт.
30
356191A1
SHIM
0,10 mm (0,004 in); Lower Pivot
1шт.
31
331-58
LUBRICANT
#2 Moly Disulfide Grease
1шт.
32
219-1
LUBE NIPPLE,1/8" - 27 NPTF
2шт.
