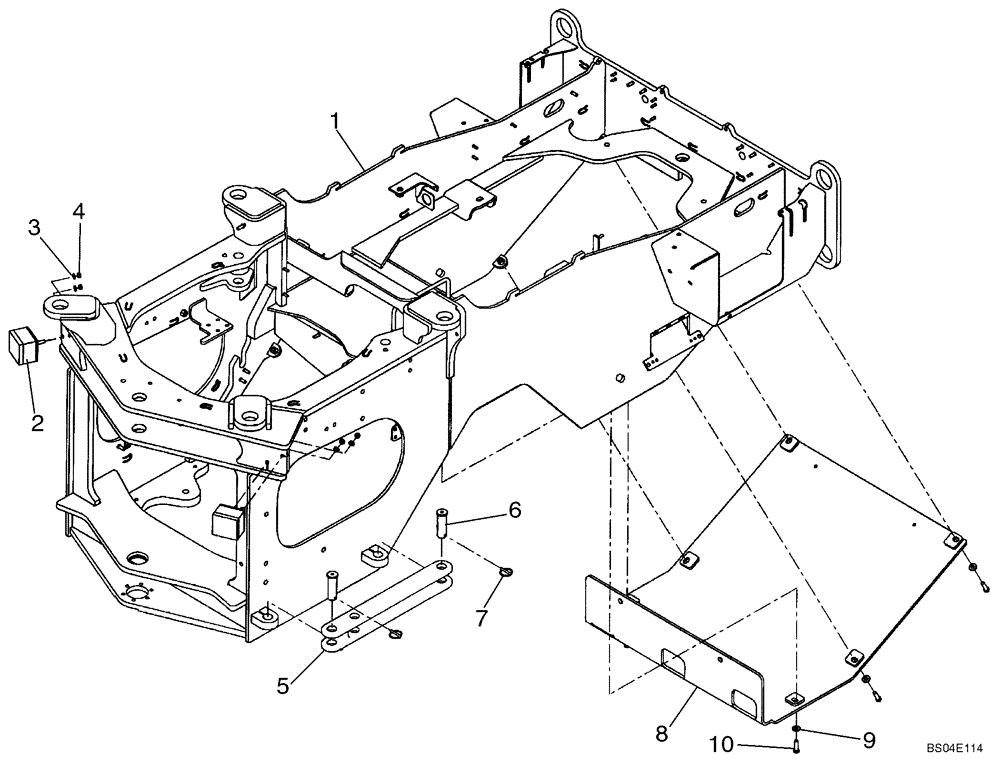

Запчасти Case 521D (09-12) - FRAME - REAR CHASSIS - IF USED (09) - CHASSIS

REF

INSTRUCTION

FOR PIVOT COMPONENTS SEE FIGURE 09-12C

1шт.

1

87453903

CHASSIS

CHASSIS Rear

1шт.

2

364193A1

DAMPER

2шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

5

412067A1

LOCKING BAR

Transport and Service

1шт.

6

126268A1

PIN,31.8mm OD x 108mm L

Link

2шт.

7

A30338

PIN

2шт.

8

86994488

SKID PLATE

1шт.

9

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

6шт.

10

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

6шт.
