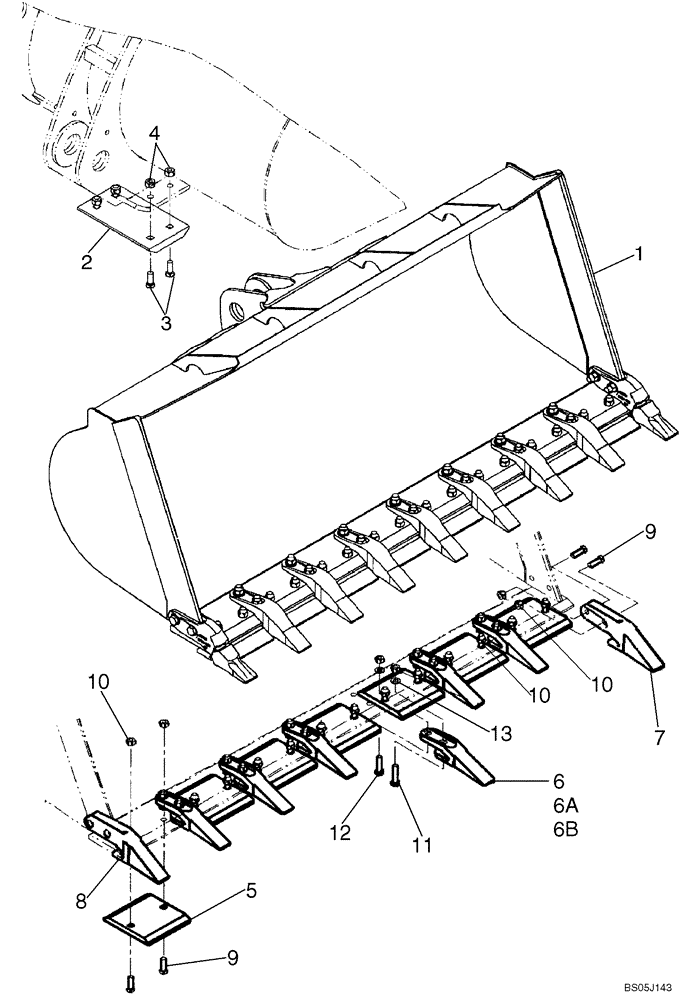

Запчасти Case 521D (09-09) - LOADER BUCKET - WITH TEETH, SEGMENTS AND SKID PADS (09) - CHASSIS

REF

INSTRUCTION

WELDED ON BUCKET COMPONENTS ARE NOT SERVICE SEPARATELY

1шт.

1

REF

INSTRUCTION

BUCKET ASSEMBLY 428428A1; 1.5 Cubic Meters ( 2 Cubic Yards ); Order From Whole Goods; Incl. 2-13

1шт.

1

REF

INSTRUCTION

BUCKET ASSEMBLY 428430A1; 1.7 Cubic Meters ( 2.25 Cubic Yards ); Order From Whole Goods; Incl. 2-13

1шт.

1

REF

INSTRUCTION

BUCKET ASSEMBLY 87429393; JRB Bucket;1.7 Cubic Meters ( 2.25 Cubic Yards ); For Use With JRB Couplers; Order From Whole Goods; Comes With Skid Plates; Teeth And Segmented Edge

1шт.

1

REF

INSTRUCTION

BUCKET ASSEMBLY 87448676; 1.5 Cubic Meters ( 2 Cubic Yards ); Use With ACS Coupler;Order From Whole Goods; Incl. 2-13

1шт.

1

REF

INSTRUCTION

BUCKET ASSEMBLY, JRB, 87307608; 2.0 cu yd; With Teeth; Order From Whole Goods; XT

1шт.

REF

INSTRUCTION

BOLT ON SKID PAD

1шт.

2

360939A1

PLATE

Bottom; Bolt On

2шт.

3

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

8шт.

4

425-1612

NUT,3/4"-10, G5, Hvy

8шт.

REF

INSTRUCTION

BUCKET TEETH AND CUTTING EDGE SEGMENTS

1шт.

5

362962A1

EDGE, CUTTING

Bolt On

7шт.

6

254825A1

TEETH

Center; 25mm Plate

6шт.

6a

233792A1

BUCKET TOOTH KEY

1шт.

NSS

NOT SOLD SEPARAT

Shank

1шт.

6b

127555A1

TOOTH

Standard

1шт.

6b

254822A1

TOOTH

Abrasion; Not Illustrated

1шт.

6b

254823A1

BUCKET TOOTH

Penetration; Not Illustrated

1шт.

7

76082151

TOOTH

Corner; Left

1шт.

8

368526A1

TOOTH

Corner; Right

1шт.

9

420-21244

PLOW BOLT,#3, 3/4" - 10 x 2 3/4", Gr 8

18шт.

10

425-1612

NUT,3/4"-10, G5, Hvy

30шт.

11

426-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

6шт.

12

426-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

6шт.

13

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

12шт.
