Запчасти Case 521D (09-06B) - FRAME-LOADER LIFT AND LINKAGE (XT) - IF USED (09) - CHASSIS

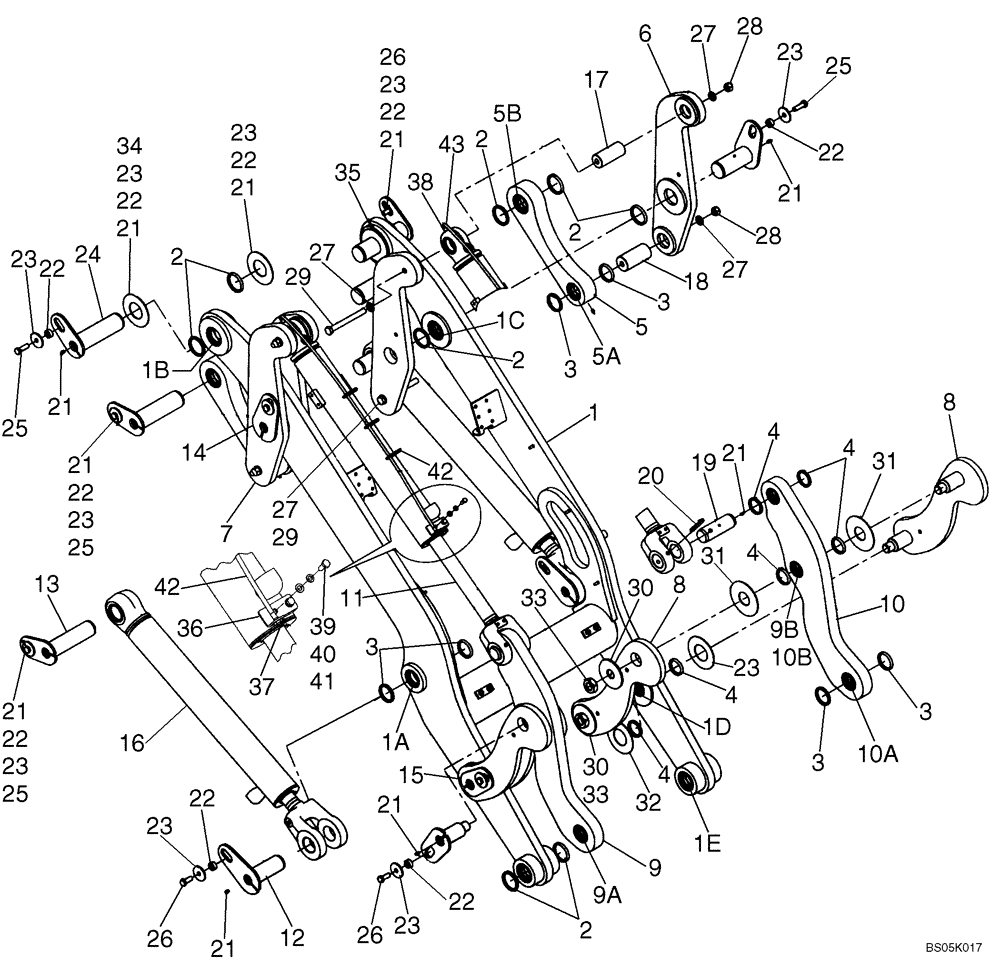

Схема запчастей Case 521D - (09-06B) - FRAME-LOADER LIFT AND LINKAGE (XT) - IF USED (09) - CHASSIS
16
41
4
21
31
23
2
36
18
30
23
12
4
9b
4
6
2
15
30
21
28
23
1d
42
37
25
22
26
8
31
32
27
5b
27
5
23
21
26
23
21
9a
21
25
23
3
9
21
22
38
1
3
40
2
33
23
22
4
27
11
34
27
22
2
1b
20
22
3
28
7
1a
8
23
5a
29
24
39
21
21
21
22
21
26
23
42
1c
1e
33
43
22
4
25
10
2
14
13
29
25
22
35
19
3
10b
10a
22
3
23
17

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

XT LOADER LIFT ARM

1шт.

REF

INSTRUCTION

PLATED PINS HAVE BEEN REMOVED

1шт.

1

87343694

LIFT ARM

ARM Loader Lift; Incl. 1A-1E

1шт.

1a

87613439

BUSHING,63.8mm ID x 76.31mm OD x 58mm L

BUSHING, Lift Arm; Replaces 87346262

2шт.

1b

87613440

BUSHING,70.16mm ID x 82.66mm OD x 57mm L

BUSHING, Lift Arm; Replaces 87346263

2шт.

1c

87613441

BUSHING

BUSHING, Lift Arm; Replaces 87346264

2шт.

1 d

87613427

BUSHING,57.46mm ID x 69.96mm OD x 34mm L

BUSHING, Dump Link; Replaces 369432A2

2шт.

1e

87613435

BUSHING,70.16mm ID x 82.66mm OD x 48mm L

Large, Anchor Link; Replaces 8500303

4шт.

2

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

Rod 69.8

16шт.

3

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

Rod 63.5

12шт.

4

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

Rod 57.125

12шт.

5

87447627

LINKAGE

Anchor; 5A, 5B

2шт.

5a

87613428

BUSHING,63.8mm ID x 76.31mm OD x 48mm L

Anchor; Replaces 369433A2

1шт.

5b

87613435

BUSHING,70.16mm ID x 82.66mm OD x 48mm L

Large, Anchor; Replaces 8500303

1шт.

6

87343715

BELLCRANK

Bellcrank; Left Hand

2шт.

7

87343720

BELLCRANK

Bellcrank; Right Hand

2шт.

8

87447635

LINKAGE

Guide

4шт.

9

87452240

LINKAGE

Dump; Incl. 9A, 9B

1шт.

9a

87613432

BUSHING,63.81mm ID x 76.31mm OD x 34mm L

BUSHING, Lift Arm; Replaces 379191A2

1шт.

9b

87613427

BUSHING,57.46mm ID x 69.96mm OD x 34mm L

BUSHING, Dump Link; Replaces 369432A2

2шт.

10

87452240

LINKAGE

LINK Dump; Incl. 10A, 10B

1шт.

10a

87613432

BUSHING,63.81mm ID x 76.31mm OD x 34mm L

BUSHING, Lift Arm; Replaces 379191A2

1шт.

10b

87613427

BUSHING,57.46mm ID x 69.96mm OD x 34mm L

BUSHING, Dump Link; Replaces 369432A2

2шт.

11

87446958

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 758.3mm Stroke

114 ID x 819.9 mm strk; Bucket Tilt; See Figure 08-30A

2шт.

11

87446958R

REMAN-HYD CYLINDER

2шт.

11

87446958C

CORE-HYD CYLINDER

Return Number

2шт.

12

361133A2

PIN ASSY.

PIN Lift Arm Pivot; Rod End; Case Power Tan

2шт.

13

361128A1

PIN

PIN Lift Arm Pivot; Head End; Case Power Tan

2шт.

14

368744A2

PIN ASSY.

PIN Bellcrank Pivot; CNH CE Gray

2шт.

15

369238A2

PIN ASSY.

PIN Guide Link; Case Power Tan

4шт.

16

87366683

CYLINDER ASSY.

CYLINDER 101.6 ID x 783 mm strk; Lift; See Figure 08-28D

2шт.

16

87366685R

REMAN-HYD CYLINDER

2шт.

16

87366685C

CORE-HYD CYLINDER

Return Number

2шт.

17

368775A1

PIN

Bellcrank; Cylinder Side

2шт.

18

368776A1

PIN,63.5mm OD x 130.65mm L

Bellcrank; Anchor Side

2шт.

19

368836A2

PIN,57.15mm OD x 165mm L

Tilt Cylinder

2шт.

20

38-33264

PIN,12.7mm OD x 101.6mm L, Coiled

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

18шт.

22

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

Plated

14шт.

23

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

14шт.

24

87446996

HEADED PIN

PIN Lift Arm; Case Power Tan

4шт.

25

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

26

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

6шт.

27

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

8шт.

28

829-1420

NUT,M20, Cl 10

4шт.

29

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

4шт.

30

117025A1

WASHER,40mm ID x 127mm OD x 6.35mm Thk

Hardened

4шт.

31

369712A1

WASHER

58.6 ID 3.5 Thick

4шт.

32

375517A1

WASHER,71.3mm ID x 142mm OD x 2.5mm Thk

71.3 ID; 2.5 Thick

1шт.

33

131-53

NUT,1 1/2"-12

4шт.

34

365356A1

WASHER,71.3mm ID x 142mm OD x 3.5mm Thk

71.3 ID; 3.5 Thick

1шт.

35

375516A1

WASHER,71.3mm ID x 142mm OD x 1.6mm Thk

71.3 ID; 1.6 Thick

1шт.

36

87448980

BRACKET

Grease House Mounting

2шт.

37

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

2шт.

38

328082A1

ELBOW

1/8 PT

2шт.

39

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

40

892-11010

LOCK WASHER,M10

4шт.

41

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

42

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

6шт.

43

87444057

FLEXIBLE HOSE

Grease

2шт.

Выбрано товаров: 60
