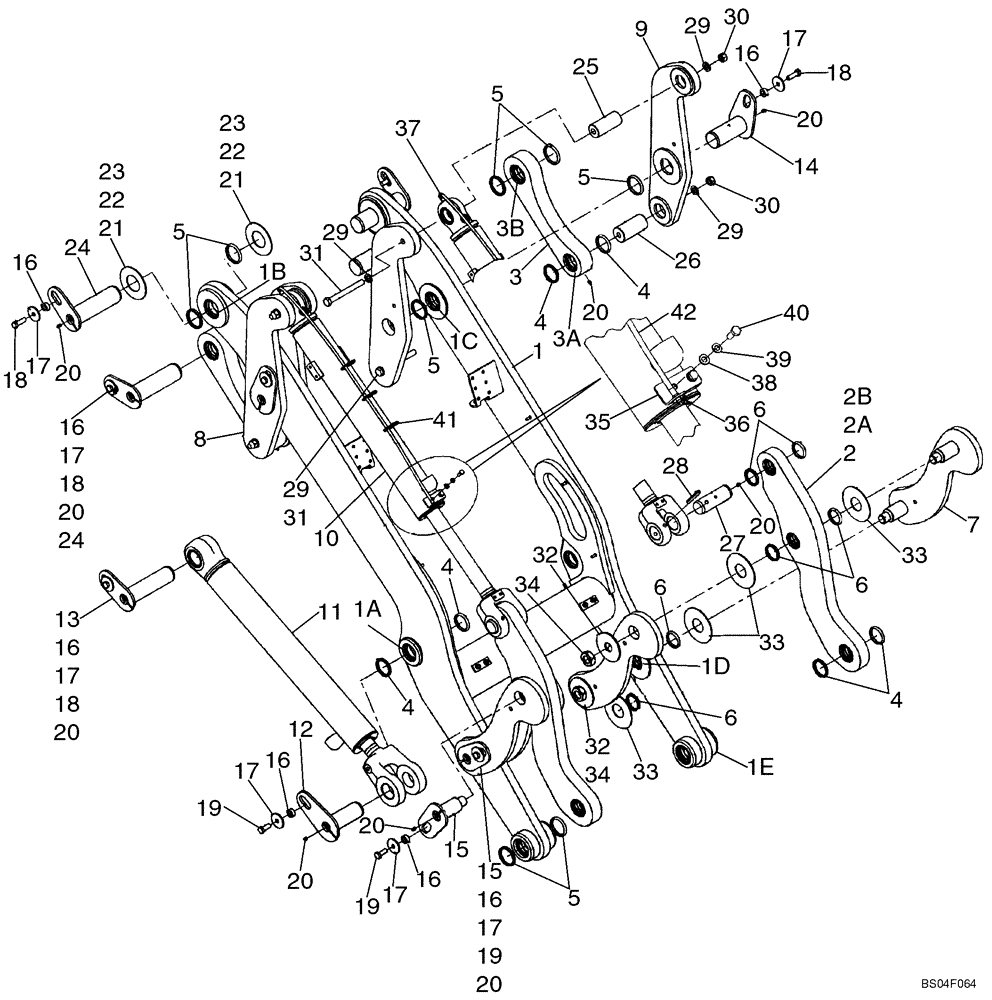

Запчасти Case 521D (09-06A) - FRAME-LOADER LIFT AND LINKAGE (XT) - IF USED (09) - CHASSIS

REF

INSTRUCTION

XT LOADER LIFT ARM

1шт.

1

87452244

LIFT ARM

Loader Lift; Incl. 1A-1E

1шт.

1a

358624A2

BUSHING

Lift Arm

2шт.

1b

87446999

BUSHING

Lift Arm

2шт.

1c

369435A2

BUSHING,70.17mm ID x 82.66mm OD x 45mm L

Lift Arm

2шт.

1 d

369432A2

BUSHING

Dump Link

2шт.

1e

8500303

BUSHING

Anchor Link

4шт.

2

87452240

LINKAGE

Dump; Incl. 2A, 2B

1шт.

2

87310634

LINKAGE

Dump Link; With Bar; Left Side; Incl. 2A, 2B

1шт.

2a

87613432

BUSHING,63.81mm ID x 76.31mm OD x 34mm L

BUSHING, Lift Arm; Replaces 379191A2

1шт.

2b

87613427

BUSHING,57.46mm ID x 69.96mm OD x 34mm L

BUSHING, Dump Link; Replaces 369432A2

2шт.

3

87447627

LINKAGE

Anchor; 3A, 3B

2шт.

3a

87613428

BUSHING,63.8mm ID x 76.31mm OD x 48mm L

Anchor; Replaces 369433A2

1шт.

3b

87613435

BUSHING,70.16mm ID x 82.66mm OD x 48mm L

Large, Anchor; Replaces 8500303

1шт.

4

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

Rod 63.5

12шт.

5

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

Rod 69.8

16шт.

6

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

Rod 57.125

12шт.

7

87447635

LINKAGE

Guide

4шт.

8

87447632

LINKAGE

Bellcrank; Right Hand

2шт.

9

87447629

LINKAGE

Bellcrank; Left Hand

2шт.

10

87446958

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 758.3mm Stroke

114 ID x 819.9 mm strk; Bucket Tilt; See Figure 08-30A

2шт.

10

87446958R

REMAN-HYD CYLINDER

2шт.

10

87446958C

CORE-HYD CYLINDER

Return Number

2шт.

11

87405367

CYLINDER ASSY.

114.3 ID x 787.6 mm strk; Lift; See Figure 08-28C; Replaced By 87317750

2шт.

11

87317750

LIFT CYLINDER

101.6 ID x 783 mm strk; Lift; See Figure 08-28A

2шт.

12

361133A2

PIN ASSY.

2шт.

13

361128A1

PIN

2шт.

14

368744A2

PIN ASSY.

Bellcrank Pivot

2шт.

15

369238A2

PIN ASSY.

Guide Link

4шт.

16

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

14шт.

17

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

14шт.

18

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

12шт.

19

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

6шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

18шт.

21

365356A1

WASHER,71.3mm ID x 142mm OD x 3.5mm Thk

71.3 ID; 3.5 Thick

1шт.

22

375516A1

WASHER,71.3mm ID x 142mm OD x 1.6mm Thk

71.3 ID; 1.6 Thick

1шт.

23

375517A1

WASHER,71.3mm ID x 142mm OD x 2.5mm Thk

71.3 ID; 2.5 Thick

1шт.

24

87446996

HEADED PIN

Lift Arm

4шт.

25

368775A1

PIN

Bellcrank; Cylinder Side

2шт.

26

368776A1

PIN,63.5mm OD x 130.65mm L

Bellcrank; Anchor Side

2шт.

27

368836A2

PIN,57.15mm OD x 165mm L

Tilt Cylinder

2шт.

28

38-33264

PIN,12.7mm OD x 101.6mm L, Coiled

2шт.

29

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

8шт.

30

829-1420

NUT,M20, Cl 10

4шт.

31

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

4шт.

32

117025A1

WASHER,40mm ID x 127mm OD x 6.35mm Thk

4шт.

33

369712A1

WASHER

58.6 ID 3.5 Thick

8шт.

34

131-53

NUT,1 1/2"-12

4шт.

35

87448980

BRACKET

Grease House Mounting

1шт.

36

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

2шт.

37

328082A1

ELBOW

1/8 PT

2шт.

38

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

39

892-11010

LOCK WASHER,M10

2шт.

40

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

41

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

6шт.

42

87444057

FLEXIBLE HOSE

Grease

2шт.
