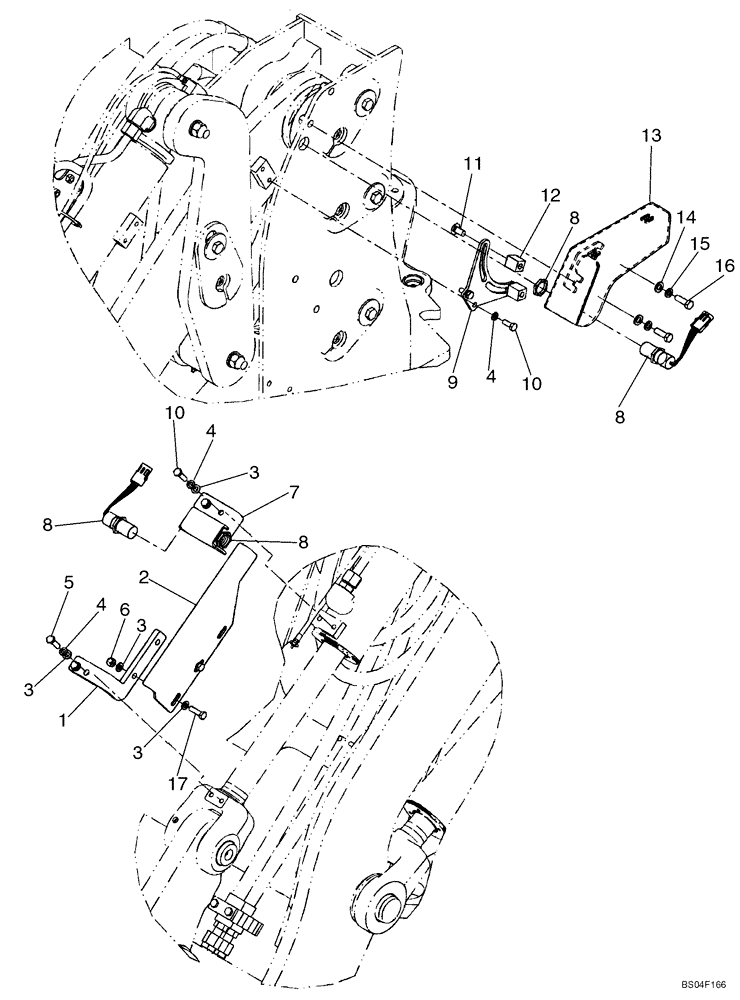

Запчасти Case 521D (09-04A) - CONTROLS - RTD,RTT, AND HGT -XT- TIER II (09) - CHASSIS

REF

INSTRUCTION

XT LOADER; TIER II

1шт.

1

87304560

BRACKET

RTD Rod End

1шт.

2

87448979

BRACKET

RTD Target

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

4

892-11010

LOCK WASHER,M10

6шт.

5

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

7

87448976

BRACKET

Proximity Switch

1шт.

8

1546498C1

SWITCH

Proximity

2шт.

9

379149A2

MOUNTING PLATE

Target Mounting

1шт.

10

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

11

811-12025

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

4шт.

12

87437102

BLOCK

Proximity Switch

2шт.

13

87450063

COVER

Proximity Switch

1шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

15

892-11012

LOCK WASHER,M12

2шт.

16

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

17

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.
