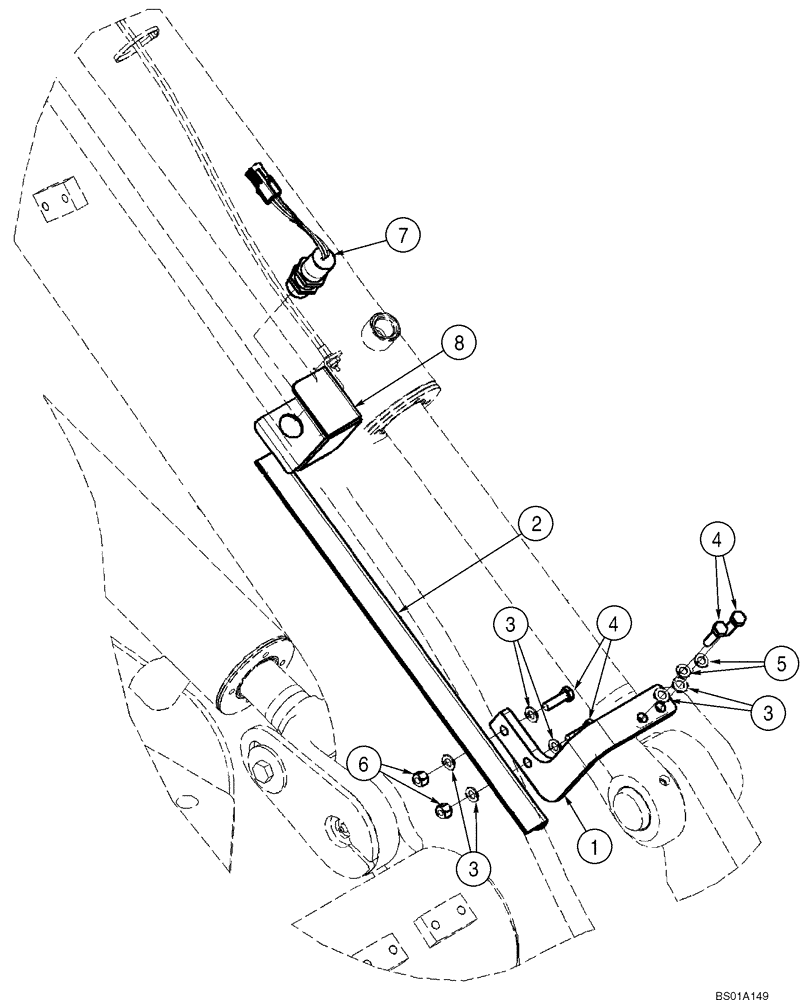

Запчасти Case 521D (09-02) - CONTROL - RETURN-TO-DIG (XT LOADER) (09) - CHASSIS

REF

INSTRUCTION

XT LOADER

1шт.

1

379659A2

BRACKET

Return To Dig; Rod End

1шт.

2

389722A2

BRACKET

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

4

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

5

892-11010

LOCK WASHER,M10

4шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

7

1546498C1

SWITCH

2шт.

8

389723A2

BRACKET

Return To Dig; Proximity Switch; Use Existing Hardware

1шт.
