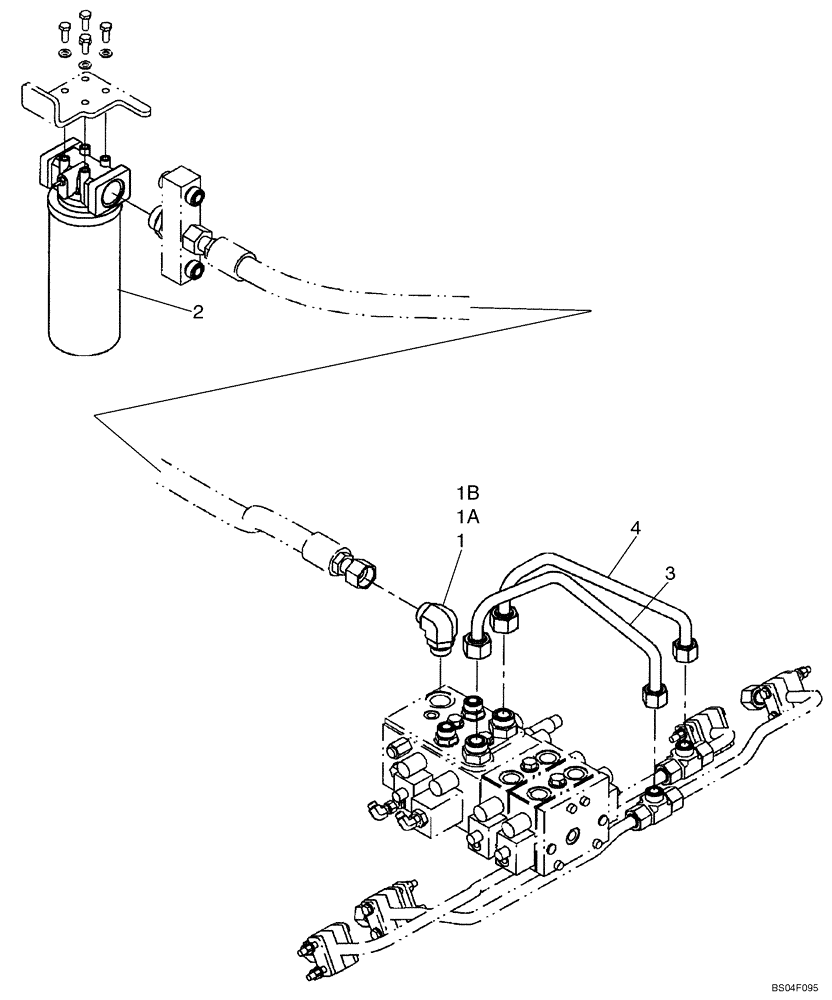

Запчасти Case 521D (08-43B) - HYDRAULIC LINES - NON RIDE CONTROL (08) - HYDRAULICS

REF

INSTRUCTION

NO RIDE CONTROL - VALVE TO FILTER

1шт.

1

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 1A, 1B

1шт.

1a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

1b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

2

87403734

FILTER ASSY

With Out Reverse Flow

1шт.

3

87452291

TUBE,19.05 mm OD

Head

1шт.

4

87452293

TUBE,19.05 mm OD

Rod

1шт.
