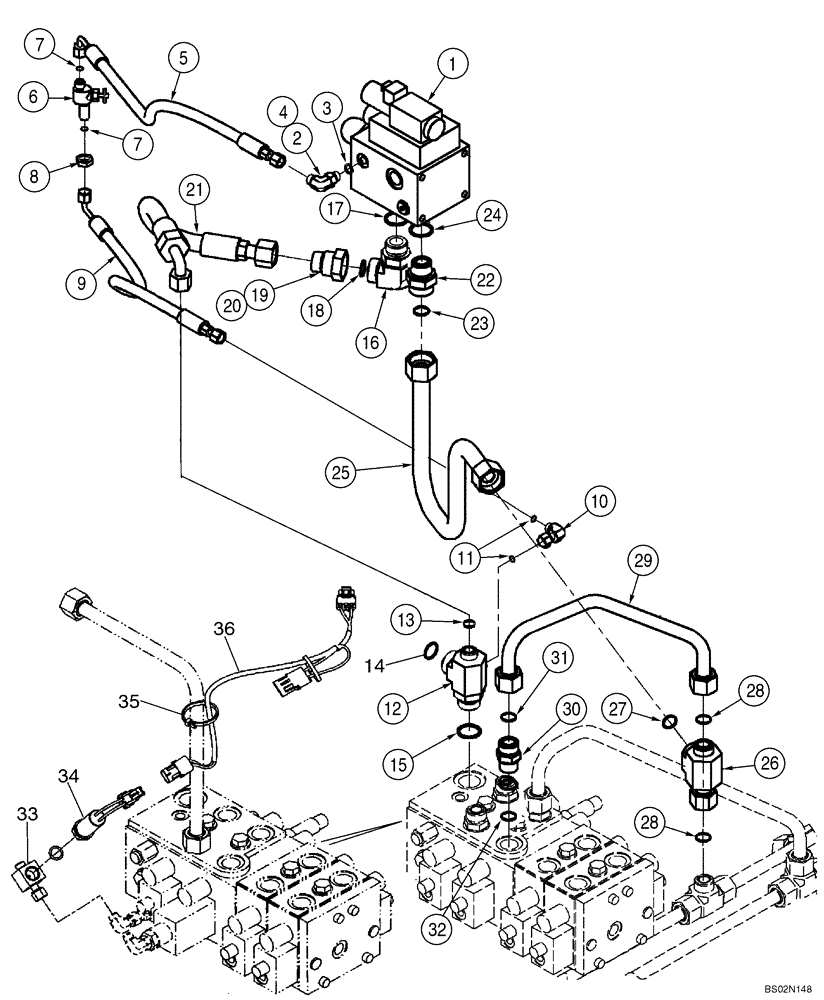

Запчасти Case 521D (08-43) - HYDRAULICS - RIDE CONTROL - IF USED (08) - HYDRAULICS

REF

INSTRUCTION

DIRECTIONAL VALVE TO LOADER VALVE

1шт.

1

404428A1

VALVE

Directional Control; See Figure 08-45

1шт.

2

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

M14 orb x 8 fc sl; Incl. 3, 4

1шт.

3

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

4

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

5

404347A1

HOSE ASSY.

571 mm lg

1шт.

6

397939A1

BLEEDER VALVE

Incl. 7

1шт.

7

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

2шт.

8

701-1254

BHD LOCK NUT,9/16" - 18

M6

1шт.

9

404351A1

HOSE ASSY.

696 mm lg

1шт.

10

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

M6 fc sl x swl; Incl. 11

1шт.

11

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

2шт.

12

404350A1

FITTING

Incl. 13 - 15

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

14

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

15

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

16

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 17, 18

1шт.

17

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

18

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

19

201-147

REDUCER,1 3/16"-12 Male x 1 7/16"-12 Fem, ORFS

Incl. 20

1шт.

20

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

21

404349A2

HOSE ASSY.

493 mm lg; Ride Control Tank

1шт.

22

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1-7/16 fc sl x 33 Or; Incl. 23, 24

1шт.

23

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

24

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

25

413465A1

TUBE

Tube; Ride Control Head

1шт.

26

403916A1

TEE

Incl. 27, 28

1шт.

27

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

28

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Boss Seal

2шт.

29

404536A1

TUBE

Lift Cylinder; Closed End

1шт.

30

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 31, 32

1шт.

31

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

32

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

33

397547A1

FITTING

8 mm

1шт.

34

446183A1

PRESSURE SWITCH

Rollback

1шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

Cable Strap

1шт.

36

446193A1

WIRE HARNESS

Rollback Switch Jumper

1шт.
