Запчасти Case 521D (08-35) - HYDRAULICS - LOADER CONTROL, REMOTE (08) - HYDRAULICS

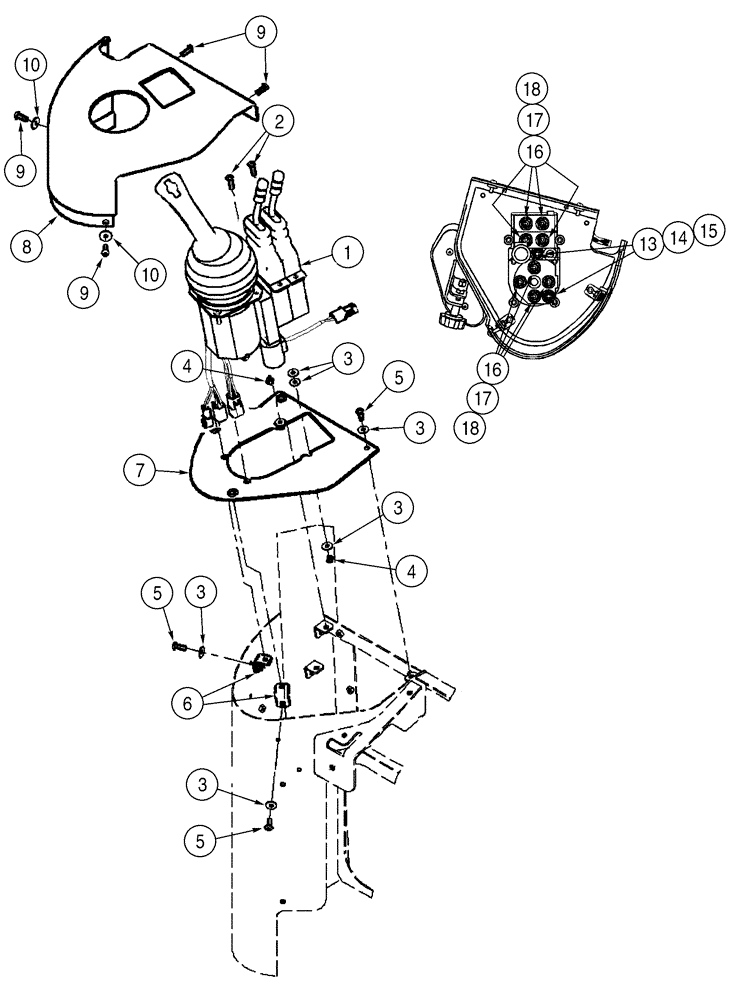

Схема запчастей Case 521D - (08-35) - HYDRAULICS - LOADER CONTROL, REMOTE (08) - HYDRAULICS
6
14
13
10
4
16
18
5
3
17
4
18
10
9
3
9
15
7
8
3
3
3
2
9
16
1
5
17
5

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

THREE LEVER WITH FOUR SPOOL VALVE

1шт.

1

87430914

JOYSTICK

Three Lever; See Figure(s) 08-37, 08-38, 08-40

1шт.

2

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

6шт.

3

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

14шт.

4

832-10406

NUT,M6 x 1, Cl 8

6шт.

5

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

6шт.

6

400843A2

BRACKET

2шт.

7

400977A2

PLATE

1шт.

8

400403A1

COVER

1шт.

9

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

4шт.

10

1990502C1

WASHER

1/4 x 13/16 x 1/16 in

2шт.

13

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 14, 15

2шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

15

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

16

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

M8 fc sl x 14 orb; Incl. 17, 18

8шт.

17

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

18

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

Выбрано товаров: 17
