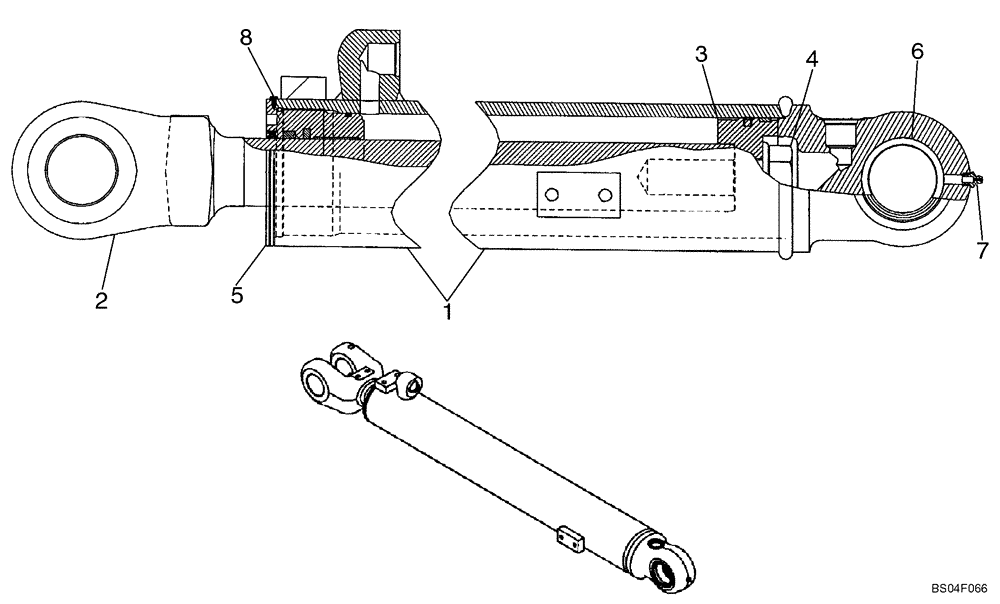

Запчасти Case 521D (08-30A) - CYLINDER ASSY - LOADER BUCKET (XT LOADER) - IF USED (08) - HYDRAULICS

REF

INSTRUCTION

XT LOADER

1шт.

87446958

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 758.3mm Stroke

101mm ID x 758.3mm Stroke; Bucket; Incl. 1 - 9

1шт.

87446958R

REMAN-HYD CYLINDER

1шт.

87446958C

CORE-HYD CYLINDER

Return Number

1шт.

1

87446960

BARREL,101.45 mm ID x 990.8 mm L

Tube, Incl. 1A

1шт.

1a

NSS

NOT SOLD SEPARAT

Bushing

2шт.

2

87437489

PISTON ROD

57.2mm dia

1шт.

3

337552A1

PISTON

Incl. 3A - 3D

1шт.

3a

337551A1

PISTON

Dia. 101.6

1шт.

3b

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

1шт.

3c

336027A1

SEAL,98.25mm ID x 102.97mm OD x 6.96mm Thk

Dia. 101.6

1шт.

3d

336044A1

RING

Wear; Dia 101.6

1шт.

4

86982442

SPECIAL BOLT,Hex, 12, 1 1/4 x 3.25"

Incl. 4A

1шт.

4a

NSS

NOT SOLD SEPARAT

Washer

1шт.

5

337557A1

GLAND

Assembly; Incl. 5A - 5G

1шт.

5a

337555A1

GLAND

1шт.

5b

1542877C1

SEAL KIT,57.2mm Rod

Rod and Buffer; Not Serviced Separately, Order Seal Kit 360979A1

1шт.

NSS

NOT SOLD SEPARAT

SEAL, ROD; Order Seal Kit 360979A1

1шт.

NSS

NOT SOLD SEPARAT

SEAL, BUFFER; Order Seal Kit 360979A1

1шт.

5c

336039A1

BUSHING

1шт.

5d

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

1шт.

5e

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

1шт.

5f

G109299

BACK-UP RING,94.87mm ID x 97.67mm OD x 1.4mm Thk

1шт.

5g

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

3-5/8 x 3-7/8

1шт.

6

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

8

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

Self Tapping

1шт.

9

360979A1

SEAL KIT

Seal Service; Not Illustrated; Incl. 3B, 3D, 5B-5G And G102285 Piston Seal

1шт.
