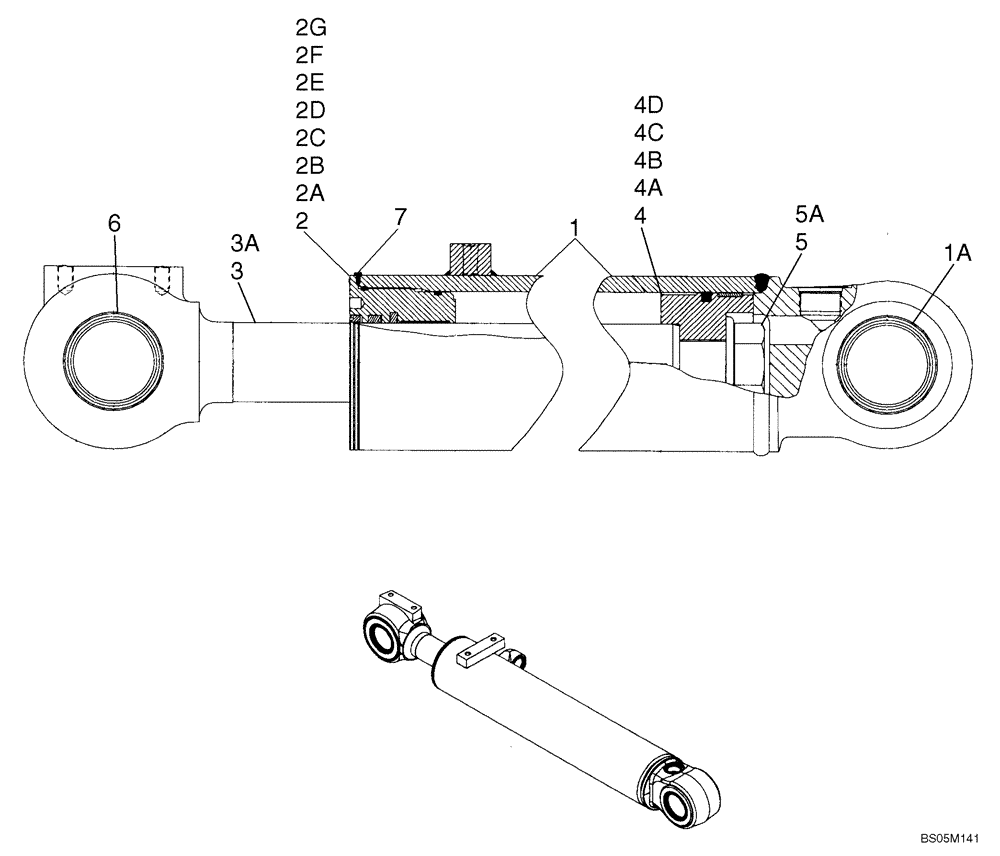

Запчасти Case 521D (08-29A) - CYLINDER ASSY - LOADER BUCKET (Z BAR LOADER) (08) - HYDRAULICS

REF

INSTRUCTION

Z-BAR LOADER

1шт.

87366674

CYLINDER ASSY.

CYLINDER ASSY. 114 ID x 529 mm strk; Bucket; Incl. 1 - 9

1шт.

87366673R

REMAN-HYD CYLINDER

1шт.

87366673C

CORE-HYD CYLINDER

Return Number

1шт.

87434291

SEAL KIT

KIT, SEALS; Incl. Refs. 2B-2G, 4D, 8, 9

1шт.

1

336395A1

TUBE,114.15 mm ID, 783.5 mm Length

Incl. 1A

1шт.

1a

87625615

BUSHING,63.84mm ID x 76.32mm OD x 36mm L

Replaces 336388A1

2шт.

2

336379A1

GLAND

Incl. 2A - 2G; Order Components

1шт.

2a

336378A1

GLAND

1шт.

2b

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

2c

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

Seal; Incl. Rod And Buffer Seal

1шт.

NSS

NOT SOLD SEPARAT

Seal, Rod

1шт.

NSS

NOT SOLD SEPARAT

Seal, Buffer

1шт.

2d

336041A1

BUSHING

1шт.

2e

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

2f

G109300

RING,113.46mm ID x 118.97mm OD x 1.17mm Thk

1шт.

2g

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

1шт.

3

336391A1

ROD ASSY.

63,5 mm dia; Incl. 3A

1шт.

3a

336388A1

BUSHING

2шт.

4

336377A1

PISTON

Assembly; Incl. 4A - 4D

1шт.

4a

336376A1

PISTON

1шт.

4b

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

SEALRING

1шт.

4c

336029A1

SEAL,115.75mm ID x 111.02mm OD x 6.96mm Thk

1шт.

4d

336045A1

RING

1шт.

5

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Incl. 5A

1шт.

5a

NSS

NOT SOLD SEPARAT

Washer

1шт.

6

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

4шт.

7

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

Self Tapping

1шт.

8

361000A1

SEAL

Not Illustrated

1шт.

9

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

SEALRING Not Illustrated

1шт.
