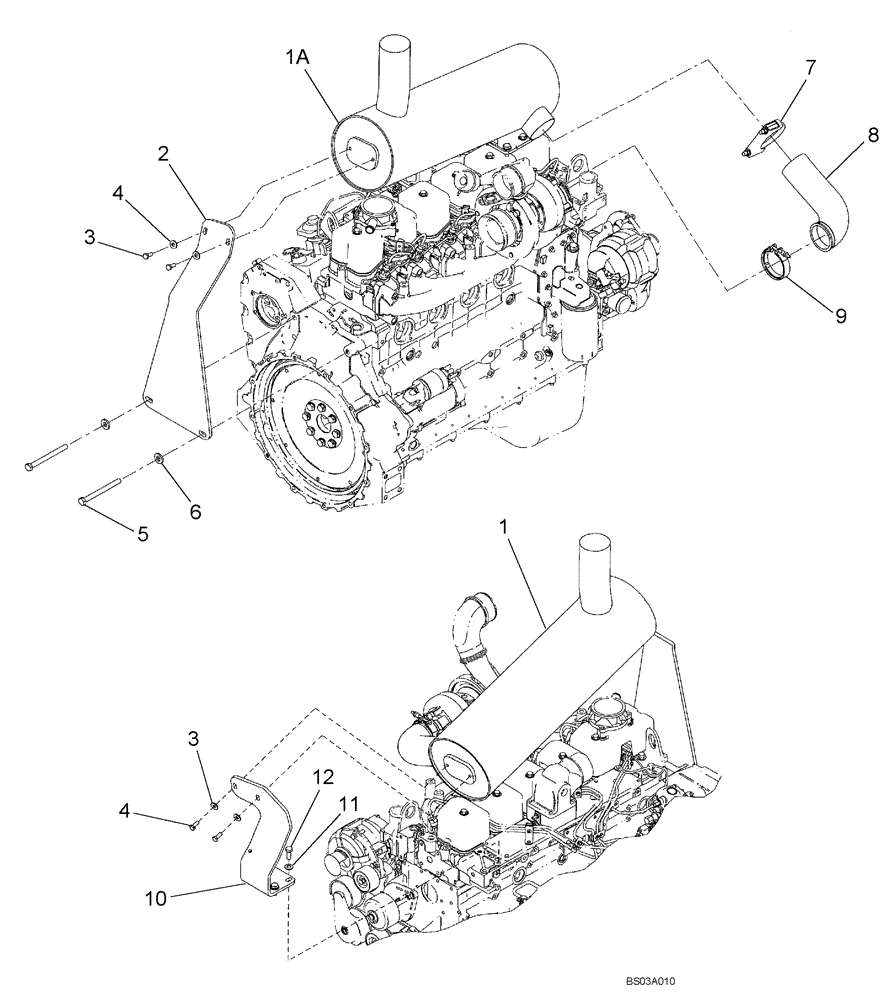

Запчасти Case 521D (02-11) - MUFFLER - EXHAUST SYSTEM (02) - ENGINE

1

388283A1

MUFFLER

Standard

1шт.

1a

373393A1

MUFFLER

Spark Arrester

1шт.

2

86991785

BRACKET

1шт.

3

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

4

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

7шт.

REF

INSTRUCTION

IN BOTTOM FIGURE REF 3 AND 4 ARE SWITCHED

1шт.

5

827-12130

BOLT,Hex, M12 x 1.75 x 130mm, Cl 10.9

M12 x 130; 10.9

2шт.

6

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

7

299456A1

CLAMP,80.5mm ID

1шт.

8

86983217

TUBE,76.20 mm OD x 212, 90 mm L

1шт.

9

J903652

CLAMP

1шт.

10

87409308

BRACKET

1шт.

11

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

12

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

13

408195A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST Not Illustrated

1шт.

14

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

Not Illustrated

4шт.

15

832-10406

NUT,M6 x 1, Cl 8

M10; Not Illustrated

4шт.
