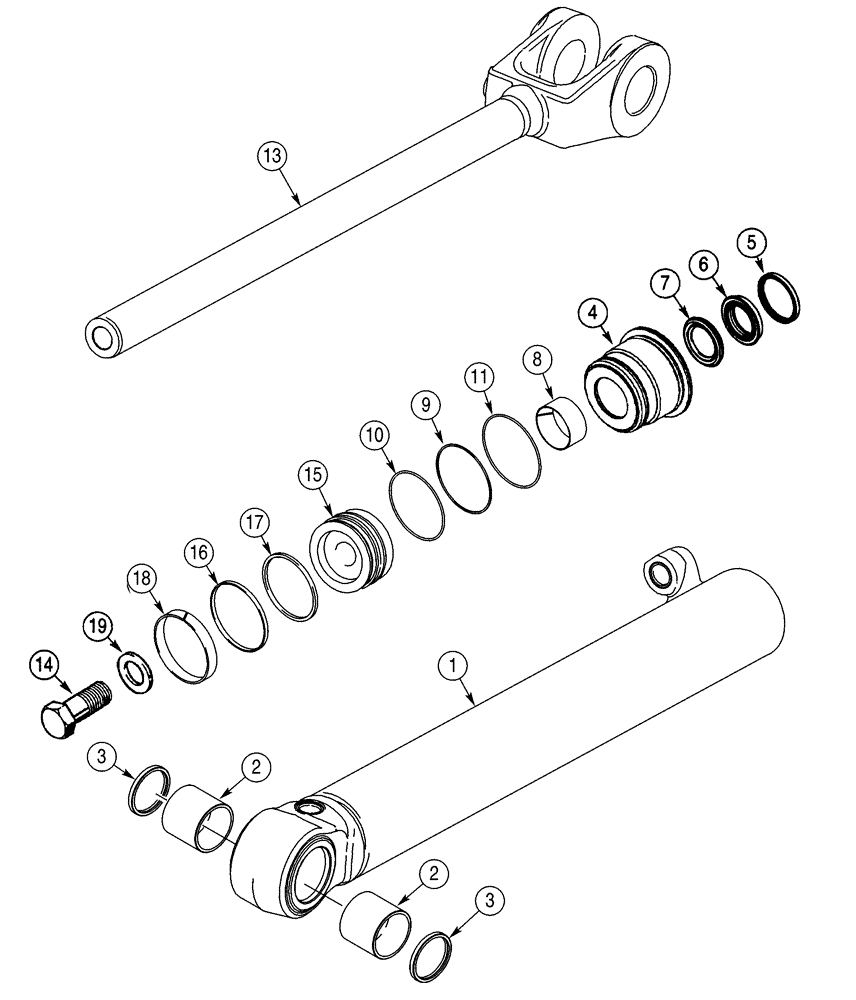

Запчасти Case 521D (08-28C) - CYLINDER ASSY - LOADER LIFT XR (08) - HYDRAULICS

REF

INSTRUCTION

XR LOADER

1шт.

87405374

CYLINDER ASSY.

114 ID x 788 mm strk; Lift; Incl. 1 - 19

2шт.

1

394357A1

TUBE,114.15 mm ID, 139.9 mm OD

Incl. 2

1шт.

2

87625615

BUSHING,63.84mm ID x 76.32mm OD x 36mm L

Replaces 336388A1

2шт.

3

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

2шт.

336379A1

GLAND

Cylinder; Incl. 4 - 11; Order Components

1шт.

4

336378A1

GLAND

1шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

Seal; Incl. 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Seal, Rod

1шт.

7

NSS

NOT SOLD SEPARAT

Seal, Buffer Seal

1шт.

8

336041A1

BUSHING

1шт.

9

G109300

RING,113.46mm ID x 118.97mm OD x 1.17mm Thk

1шт.

10

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

1шт.

11

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

12

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

Not Illustrated

1шт.

Not Illustrated

1шт.

13

340921A1

ROD ASSY.

63,5 mm dia

1шт.

14

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Incl. 19

1шт.

Incl. 19

1шт.

341971A1

PISTON

Incl. 15 - 18

1шт.

Incl. 15 - 18

1шт.

15

341968A1

PISTON

1шт.

16

336029A1

SEAL,115.75mm ID x 111.02mm OD x 6.96mm Thk

1шт.

17

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

SEALRING

1шт.

18

336045A1

RING

1шт.

19

NSS

NOT SOLD SEPARAT

Washer

1шт.

360982A1

SEAL KIT

Seal; Incl. 5 - 11, 16 - 18; Includes 361000A1 Expandable Seal Ring For Service Replacement of Ref 16 Piston Seal

1шт.
