Запчасти Case 521D (08-28A) - CYLINDER ASSY - LOADER LIFT ( Z-BAR/XT LOADER) (08) - HYDRAULICS

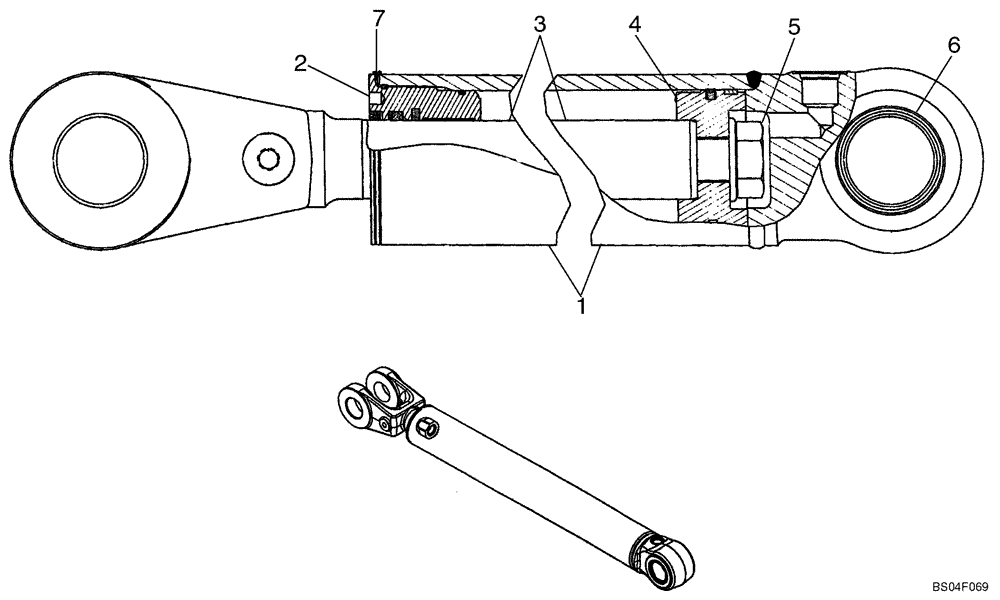

Схема запчастей Case 521D - (08-28A) - CYLINDER ASSY - LOADER LIFT ( Z-BAR/XT LOADER) (08) - HYDRAULICS
7
3
5
6
4
2

Артикул

Название

Примечание

Количество

87317750

LIFT CYLINDER

101.6 ID x 783 mm strk; Lift; Incl. 1 - 8

2шт.

REF

INSTRUCTION

Z-BAR LOADER

1шт.

1

337567A1

TUBE,1015.7 mm Length

Incl. 1A

1шт.

1a

87625615

BUSHING,63.84mm ID x 76.32mm OD x 36mm L

Replaces 336388A1

2шт.

2

337557A1

GLAND

Assembly; Incl. 2A - 2G

1шт.

2a

337555A1

GLAND

1шт.

2b

1542877C1

SEAL KIT,57.2mm Rod

Rod and Buffer; Not Serviced Separately, Order Seal Kit 360979A1

1шт.

NSS

NOT SOLD SEPARAT

Seal, Rod; Order Seal Kit 360979A1

1шт.

NSS

NOT SOLD SEPARAT

Seal, Buffer Seal; Order Seal Kit 360979A1

1шт.

2c

336039A1

BUSHING

1шт.

2d

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

1шт.

2e

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

1шт.

2f

G109299

BACK-UP RING,94.87mm ID x 97.67mm OD x 1.4mm Thk

1шт.

2g

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

3-5/8 x 3-7/8

1шт.

3

87317752

PISTON ROD

Rod Assembly 57.2mm Diameter

1шт.

4

337552A1

PISTON

Incl. 4A - 4D

1шт.

4a

337551A1

PISTON

Dia. 101.6

1шт.

4b

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

1шт.

4c

336027A1

SEAL,98.25mm ID x 102.97mm OD x 6.96mm Thk

Dia. 101.6

1шт.

4d

336044A1

RING

Wear; Dia 101.6

1шт.

5

86982442

SPECIAL BOLT,Hex, 12, 1 1/4 x 3.25"

Incl. 5A

1шт.

5a

NSS

NOT SOLD SEPARAT

Washer

1шт.

6

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

7

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

Self Tapping

1шт.

8

360979A1

SEAL KIT

Seal Service; Not Illustrated; Incl. 2B, 2D, 2B-2G And G102285 Piston Seal

1шт.
