Запчасти Case 521D (08-19) - VALVE ASSY - LOADER CONTROL, FOUR SPOOL - Z-BAR (08) - HYDRAULICS

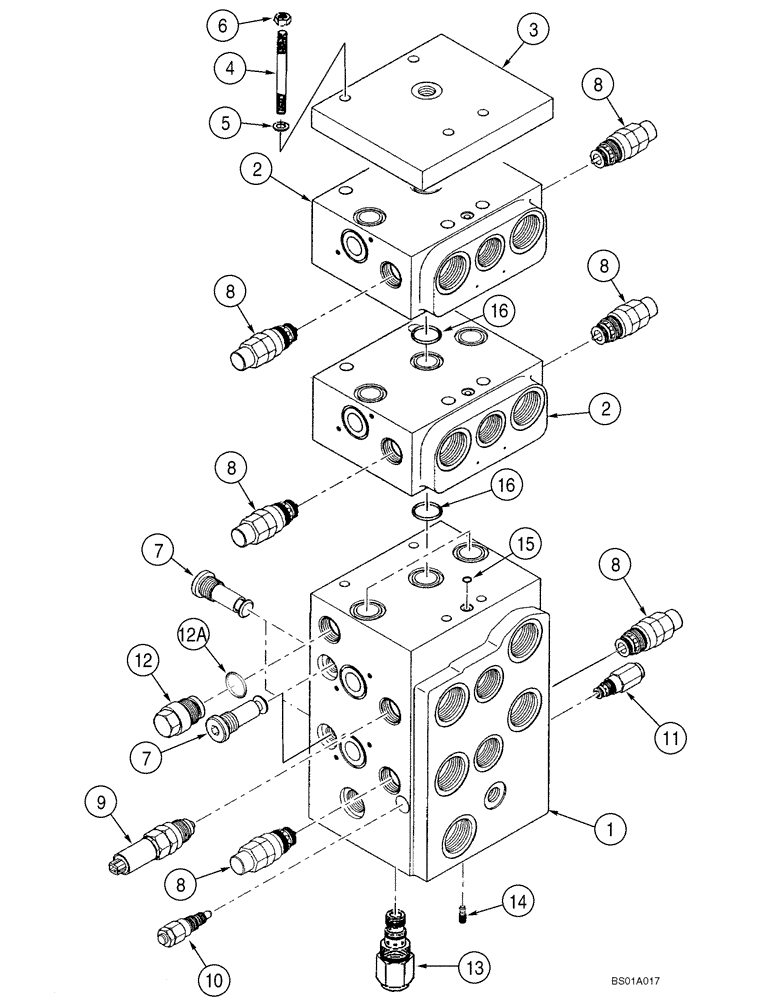

Схема запчастей Case 521D - (08-19) - VALVE ASSY - LOADER CONTROL, FOUR SPOOL - Z-BAR (08) - HYDRAULICS
16
7
8
8
8
16
8
2
8
12a
2
9
8
5
13
3
12
4
15
10
14
1
11
6
7

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Z-BAR LOADER

1шт.

87411111

CONTROL VALVE

Four Spool; Incl. 1 - 16; Also Includes Figure(s) 08-21, 08-22

1шт.

87307984

HYDRAULIC VALVE

Replaces 87411111; See Figure 08-19A, 19C

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

8604565

BLOCK

Spool; See Figure 08-22

1шт.

3

8604564

PLATE

Valve

1шт.

4

8604585

BOLT

Stud

4шт.

5

892-11008

LOCK WASHER,8mm ID

4шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

7

8604758

VALVE, CHECK

4шт.

8

8604763

VALVE

Anticavitation; Includes Spool, (3) O-Rings, Thrust Ring, Nut and Seal Kit; Component Parts Not Serviced Separately; For Service Of Externaionl Seals, Order 8604787 Seal Kit, Ref 8A; Incl. 8A

6шт.

8a

8604787

SEAL KIT

Seal; Not Illustrated

1шт.

9

8604766

VALVE

Anticavitation; Includes (3) O-Rings, Spool Seal and Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, Order 8604790 Seal Kit, Ref 9A; Incl. 9A

1шт.

9a

8604790

SEAL KIT

Seal; Not Illustrated

1шт.

10

8604769

VALVE

Pressure Relief; Includes (4) Thrust Rings, (3) O-Rings and Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, Order 8604793 Seal Kit, Ref 10A; Incl. 10A

2шт.

10a

8604793

SEAL KIT

Seal; Not Illustrated

1шт.

11

8604772

VALVE

Flow Limiting; Includes (2) O-Rings, (1) Thrust Ring and Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, order 8604796 Seal Kit, Ref 11A; Incl. 11A

1шт.

11a

8604796

SEAL KIT

Seal; Not Illustrated

1шт.

12

8604572

INSERT

Pilot Pressure; Incl. 12A

1шт.

12a

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

1шт.

13

8604775

VALVE

Flow Limiting; Includes (1) Seal, (3) O-Rings, (3) Thrust Rings and Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, Order 8604799 Seal Kit, Ref 13A; Incl. 13A

1шт.

13a

8604799

SEAL KIT

Seal; Not Illustrated

1шт.

14

87362307

CHECK VALVE

Replaces 8604574

1шт.

8604778

SEAL KIT

Seal; Incl. 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

O-Ring

8шт.

16

NSS

NOT SOLD SEPARAT

O-Ring

3шт.

8604937

SEAL KIT

Locking Screw

1шт.

17

8605576

COVER

Not Illustrated

1шт.

18

8605577

COVER

Not Illustrated

1шт.

Выбрано товаров: 29
