Запчасти Case 521D (08-17) - VALVE ASSY - LOADER CONTROL, THREE SPOOL - Z-BAR (08) - HYDRAULICS

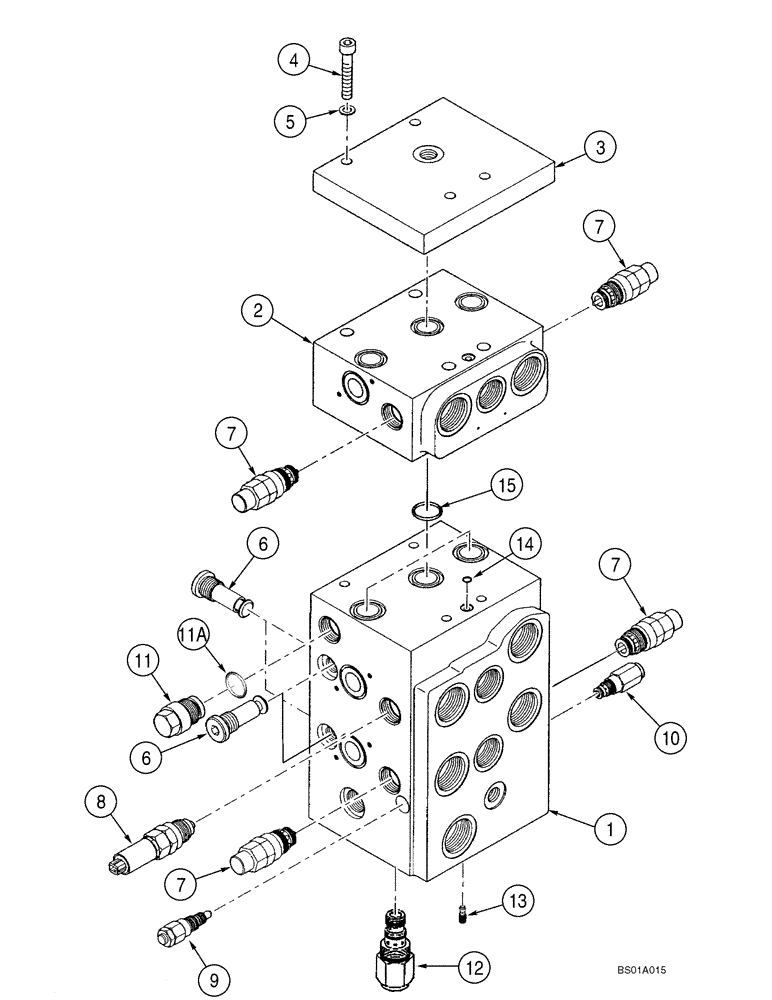

Схема запчастей Case 521D - (08-17) - VALVE ASSY - LOADER CONTROL, THREE SPOOL - Z-BAR (08) - HYDRAULICS
15
7
3
5
9
2
1
6
12
14
7
7
4
13
6
11
7
11a
10
8

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Z-BAR LOADER

1шт.

87411110

CONTROL VALVE

Three Spool; Incl. 1 - 15; Also Includes Figure(s) 08-21, 08-22

1шт.

87307983

HYDRAULIC VALVE

Replaces 87411110; See Figure 08-19A - 19C

1шт.

87307983R

REMAN-HYD VALVE

Reman Valve -- Replaces 87411110; See Figure 08-19A - 19C

1шт.

87307983C

CORE-VALVE HYD

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

8604565

BLOCK

Spool; See Figure 08-22

1шт.

3

8604564

PLATE

1шт.

4

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

5

892-11008

LOCK WASHER,8mm ID

4шт.

6

8604758

VALVE, CHECK

4шт.

7

8604763

VALVE

Anticavitation; Includes Spool, (3) O-Rings, Thrust Ring, Nut and Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, Order 8604787 Seal Kit, Ref 7A; Incl. 7A

4шт.

7a

8604787

SEAL KIT

Seal; Not Illustrated

1шт.

8

8604766

VALVE

Anticavitation; Includes (3) O-Rings, Spool Seal and Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, Order 8604790 Seal Kit, Ref 8A; Incl. 8A

1шт.

8a

8604790

SEAL KIT

Seal; Not Illustrated

1шт.

9

8604769

VALVE

Pressure Relief; Includes (4) Thrust Rings, (3) O-Rings and Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, Order 8604793 Seal Kit, Ref 9A; Incl. 9A

2шт.

9a

8604793

SEAL KIT

Seal; Not Illustrated

1шт.

10

8604772

VALVE

Flow Limiting; Includes (2) O-Rings, (1) Thrust Ring and Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, Order 8604796 Seal Kit, Ref 10A; Incl. 10A

1шт.

10a

8604796

SEAL KIT

Seal; Not Illustrated

1шт.

11

8604572

INSERT

Pilot Pressure; Incl. 11A

1шт.

12

8604775

VALVE

Flow Limiting; Includes (1) Seal, (3) O-Rings, (3) Thrust Rings and Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, Order 8604799 Seal Kit, Ref 12A; Incl. 12A

1шт.

12a

8604799

SEAL KIT

Seal; Not Illustrated

1шт.

13

87362307

CHECK VALVE

Replaces 8604574

1шт.

8604778

SEAL KIT

Seal; Incl. 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

8шт.

15

NSS

NOT SOLD SEPARAT

O-Ring

3шт.

8604937

SEAL KIT

Locking Screw

1шт.

16

8605576

COVER

Not Illustrated

1шт.

17

8605577

COVER

Not Illustated

1шт.

Выбрано товаров: 29
