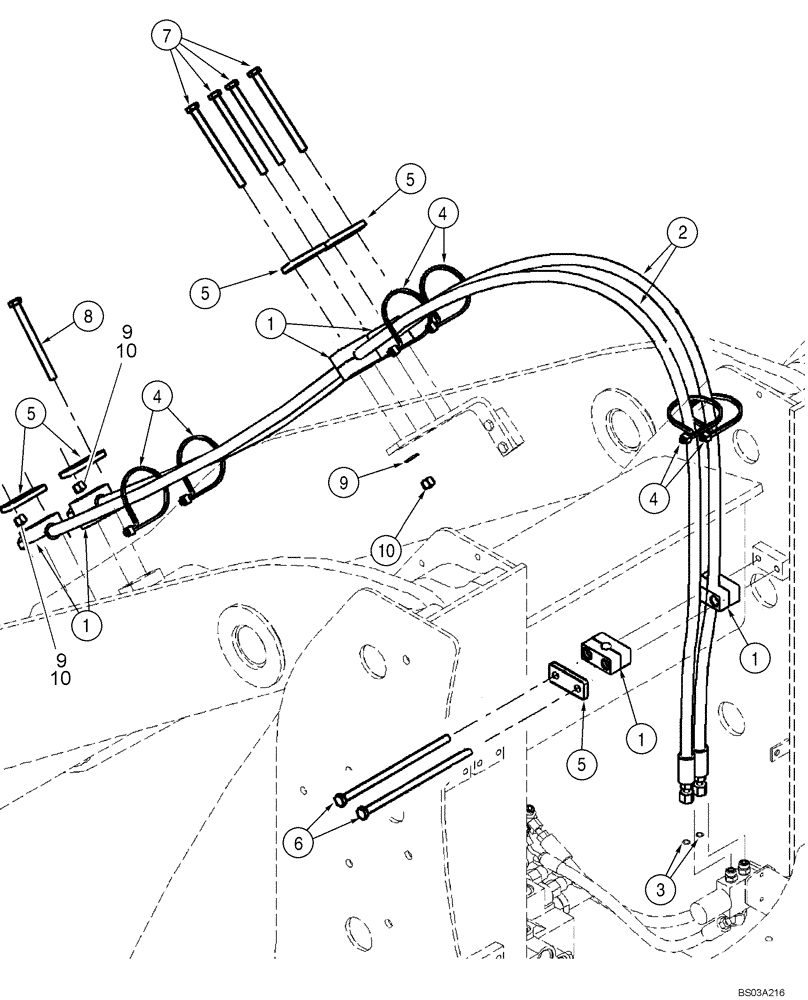

Запчасти Case 521D (08-13C) - HYDRAULICS - COUPLER XR (08) - HYDRAULICS

REF

INSTRUCTION

Z-BAR LOADER

1шт.

1

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

2шт.

2

379374A1

BLOCK

Tube Mounting

4шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

5

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

1шт.

6

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

4шт.

8

87405436

HOSE

2426 mm

2шт.

9

701-911

PLUG,Hex, 11/16" - 16 ORFS

Incl. 10

2шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

2шт.
