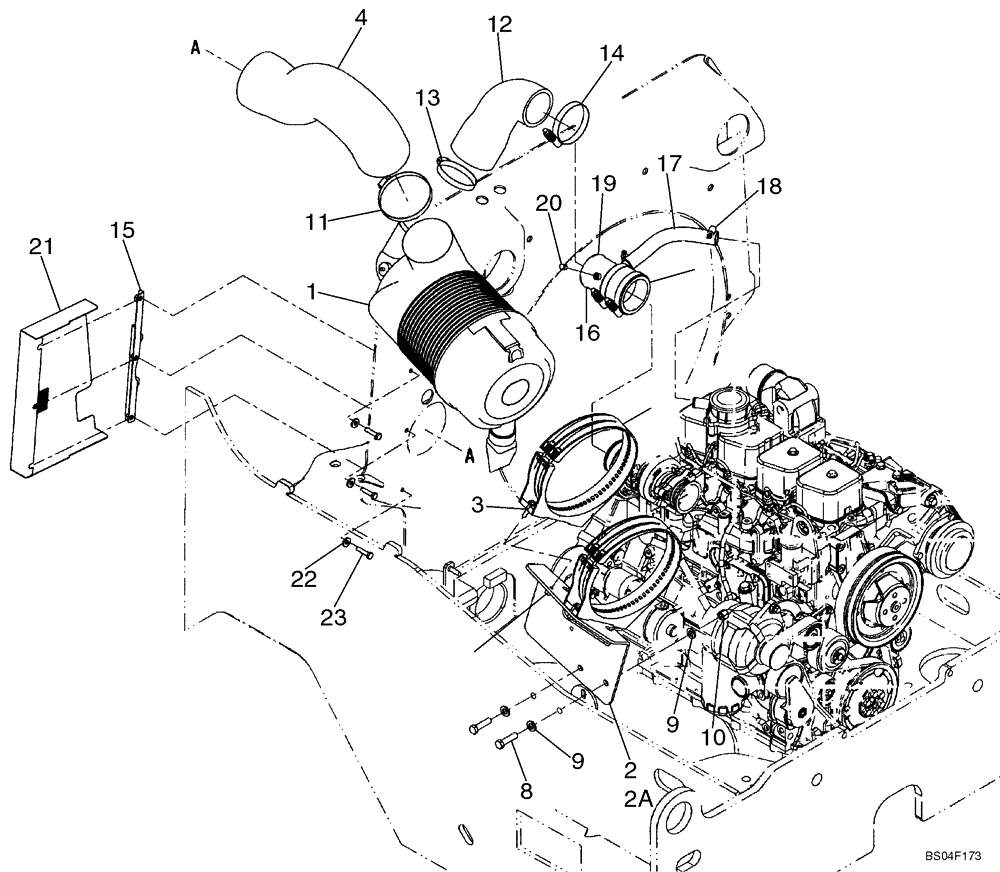

Запчасти Case 521D (02-10) - AIR CLEANER - AIR INTAKE PARTS (02) - ENGINE

1

373391A1

AIR CLEANER

See Figure 02-10A

1шт.

2

86991440

SUPPORT

Air Cleaner; Replaced by 87451674

1шт.

2a

87451674

SUPPORT

Air Cleaner; Replaces 86991440

1шт.

3

380813A1

BRACKET

Air Cleaner; 9 in

2шт.

4

397118A1

AIR INTAKE TUBE,114.00 mm ID, 125.40 mm ID, SAE J200

Fresh Air Cleaner

1шт.

5

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

8

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

10

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

11

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

1шт.

12

87400914

AIR INTAKE TUBE,76 mm ID x 89 mm OD x 196, 83 mm L

Cleaner

1шт.

13

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

1шт.

14

L116820

CLAMP,82.55mm - 104.78mm

3шт.

15

87433573

ANGLE

Screen Inlet

1шт.

16

87400915

AIR INTAKE TUBE,76 mm ID x 65 mm L

1шт.

17

87400946

HOSE

480 mm; Crankcase Vent; No Longer Used In This Application; See Figure 02-10A

1шт.

18

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

No Longer Used In This Application; See Figure 02-10A

2шт.

19

8602934

AIR INTAKE TUBE

CCV Valve

1шт.

20

86643151

PLUG,Hex Hd, 1/8"-27 NPTF

1шт.

21

87433574

SCREEN

Inlet

1шт.

22

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2.5mm

3шт.

23

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

3шт.

6

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

4шт.
