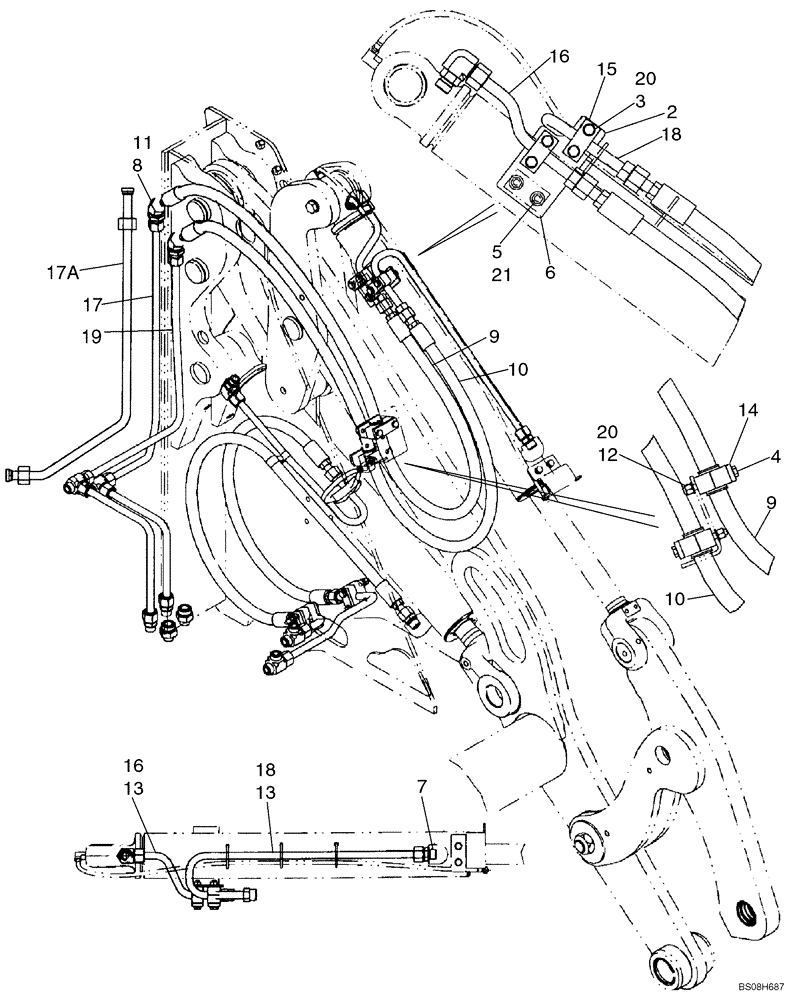

Запчасти Case 521D (08-07B) - HYDRAULICS - LOADER BUCKET LEFT SIDE (XT LOADER) - IF USED (08) - HYDRAULICS

REF

INSTRUCTION

LOADER BUCKET; XT LOADER

1шт.

1

87452747

CLAMP,33.4mm ID

Mounting

2шт.

2

379374A1

BLOCK

Mounting

2шт.

3

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

4шт.

4

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

5

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

6

87447892

BRACKET

XT Tilt Tubes Left Hand

1шт.

7

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Ref. 7A, 7B

2шт.

7a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

7b

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

8

87302137

ELBOW,45 Degree, 1 3/16"-12, ORFS, Blkhd

Incl. Ref. 8A

2шт.

8a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

2шт.

9

87304893

HOSE ASSY.,19.05mm ID x 2175mm L, SAE 100R12

XT Tilt Base, 2175 mm (85- 5/8 in)

1шт.

10

87304892

HOSE ASSY.,19.05mm ID x 2255mm L, SAE 100R12

XT Tilt Rod, 2255 mm (86-3/4 in)

1шт.

11

701-1249

BHD LOCK NUT,1-3/16" - 12

Incl. Ref. 11A

2шт.

11a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

2шт.

14

8500858

PLATE

Clamp Cover

2шт.

15

367658A1

PLATE

Clamp Cover

2шт.

16

87447928

HYD TUBE,19.05 mm OD x 259, 115 mm L

XT Tilt Base Left

1шт.

17

87447926

HYD TUBE,19.05 mm OD

XT Tilt Head Left; No Longer Available, Order 87480860 Tube Assy., Ref. 17A

1шт.

17a

87480860

HYD TUBE,19.05 mm OD x 682, 283 mm L

XT Tilt Head Left

1шт.

18

87447930

HYD TUBE,19.05 mm OD

XT Tilt Rod Left

1шт.

19

87447924

HYD TUBE,19.05 mm OD

XT Tilt Rod Left

1шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

21

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.
