(02-09A) - MOTOR, DRIVE (REVERSIBLE FAN DRIVE)

Запчасти Case 521D (02-09A) - MOTOR, DRIVE (REVERSIBLE FAN DRIVE) (02) - ENGINE

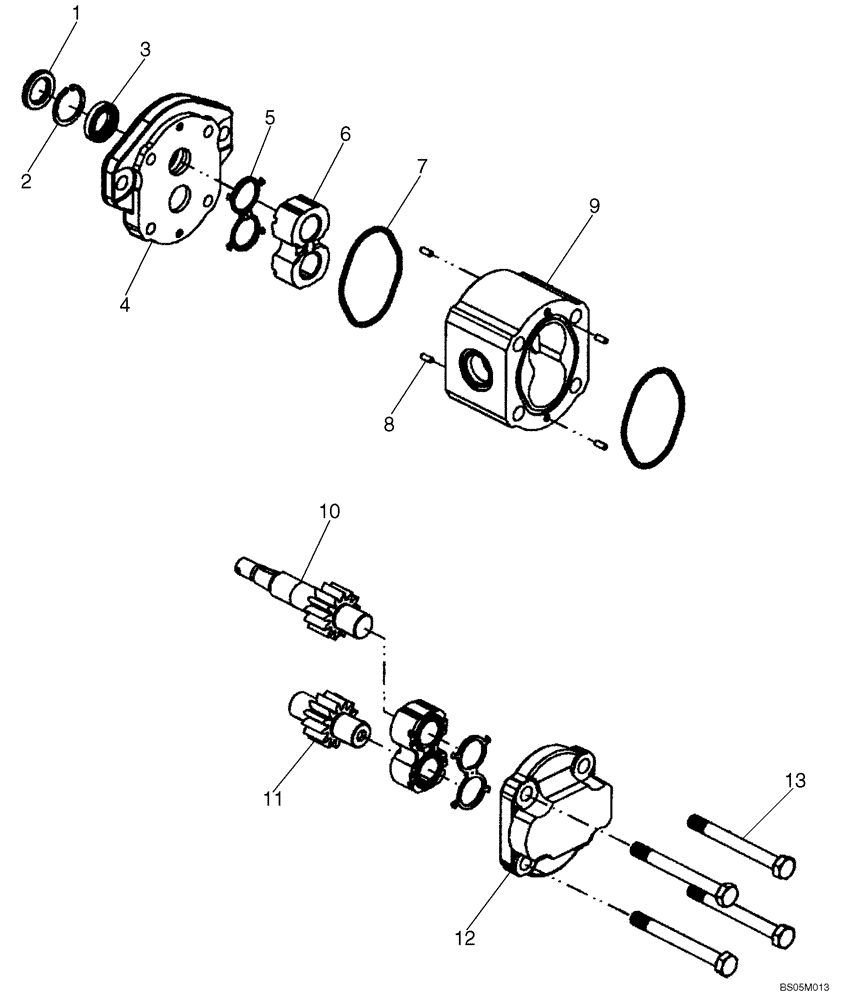

Схема запчастей Case 521D - (02-09A) - MOTOR, DRIVE (REVERSIBLE FAN DRIVE) (02) - ENGINE
8
7
5
3
2
12
1
11
9
10
4
13
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87426773

HYDRAULIC MOTOR,GEAR, 14 CC

Fan Drive; Includes 87426795 Seal Kit; M14 Drain Port On Side

1шт.

87426773R

REMAN-HYD MOTOR

1шт.

87426773C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

87426795

SEAL KIT

Kit Incl. 1-3, 5, 7

1шт.

1

NSS

NOT SOLD SEPARAT

Dust Seal

1шт.

2

NSS

NOT SOLD SEPARAT

Retaining Ring

1шт.

3

NSS

NOT SOLD SEPARAT

Shaft Seal

1шт.

5

NSS

NOT SOLD SEPARAT

Seal, Bi-Rotational

2шт.

7

NSS

NOT SOLD SEPARAT

Seal

2шт.

REF

INSTRUCTION

Following Components Not Serviced

1шт.

4

NSS

NOT SOLD SEPARAT

Flange

1шт.

6

NSS

NOT SOLD SEPARAT

Bearing Block

2шт.

8

NSS

NOT SOLD SEPARAT

Dowel Pin

4шт.

9

NSS

NOT SOLD SEPARAT

Gear Housing

1шт.

10

NSS

NOT SOLD SEPARAT

Drive Gear

1шт.

11

NSS

NOT SOLD SEPARAT

Idler Gear

1шт.

12

NSS

NOT SOLD SEPARAT

End Cover

1шт.

13

NSS

NOT SOLD SEPARAT

M10 x 1.5 in Bolt

4шт.
