Запчасти Case 521D (08-07A) - HYDRAULICS - LOADER BUCKET - RIGHT SIDE (XT LOADER) - IF USED (08) - HYDRAULICS

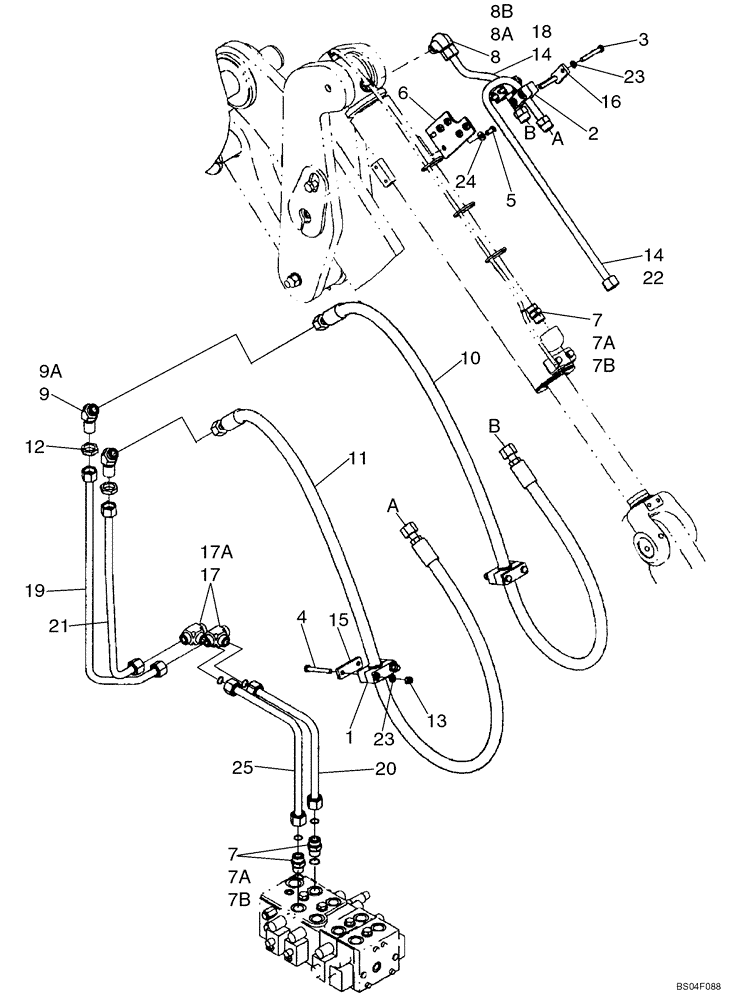

Схема запчастей Case 521D - (08-07A) - HYDRAULICS - LOADER BUCKET - RIGHT SIDE (XT LOADER) - IF USED (08) - HYDRAULICS
8a
20
17a
12
11
7b
8
22
5
7a
7
14
14
9a
1
16
13
23
7b
24
8b
4
18
7
9
2
7a
19
15
3
23
25
6
17
10
21

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

LOADER BUCKET; XT LOADER

1шт.

REF

INSTRUCTION

USED WITH OR WITHOUT RSM2-16 RIDE CONTROL OPTION

1шт.

1

87452747

CLAMP,33.4mm ID

Mounting

2шт.

2

379374A1

BLOCK

Mounting

2шт.

3

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

4шт.

4

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

M10 x 90; 10.9

4шт.

5

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

6

87447893

BRACKET

XT Tilt Tubes Right Hand

1шт.

7

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 7A, 7B

2шт.

7a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

7b

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

8

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 8A, 8B

2шт.

8a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

8b

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

9

87302137

ELBOW,45 Degree, 1 3/16"-12, ORFS, Blkhd

ELBOW ORFS, 45deg; BHD 20mm Or 3/4 in; Incl. 9A

2шт.

9a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

10

87304893

HOSE ASSY.,19.05mm ID x 2175mm L, SAE 100R12

XT Tilt Base; 2175mm ( 85-5/8 in )

1шт.

11

87304892

HOSE ASSY.,19.05mm ID x 2255mm L, SAE 100R12

XT Tilt Rod; 2255mm ( 88-3/4 in )

1шт.

12

701-1249

BHD LOCK NUT,1-3/16" - 12

Incl. 12A

2шт.

12a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

15

8500858

PLATE

Clamp Cover

2шт.

16

367658A1

PLATE

Clamp Cover

2шт.

17

701-427

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

1-3/16 fc sl; Incl. 17A

2шт.

17a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

3шт.

18

87447928

HYD TUBE,19.05 mm OD x 259, 115 mm L

XT Tilt Base Left

1шт.

19

87447920

HYD TUBE,19.05 mm OD

XT Tilt Head Right

1шт.

20

404363A1

TUBE

XT Tilt Rod

1шт.

21

87447922

HYD TUBE,19.05 mm OD

XT Tilt Rod Right

1шт.

22

87448138

HYD TUBE,19.05 mm OD

XT Tilt Rod Right

1шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

24

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

25

404353A1

TUBE

XT Tilt Head

1шт.
