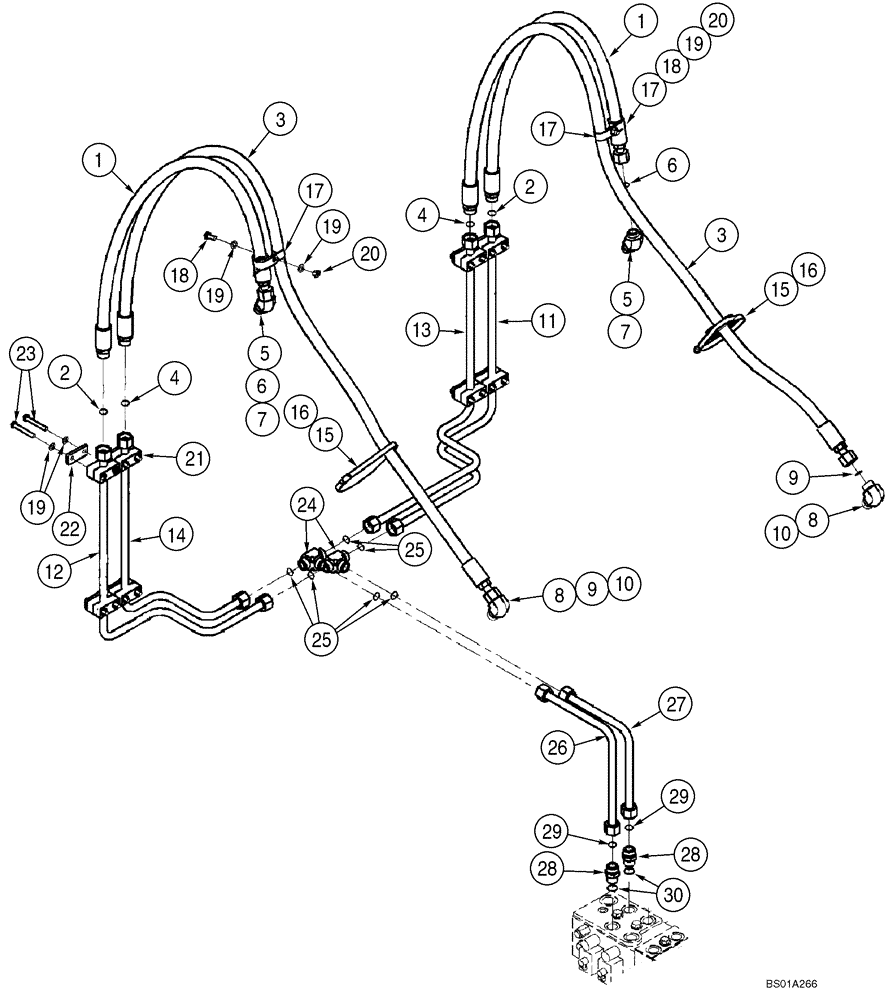

Запчасти Case 521D (08-07) - HYDRAULICS - LOADER BUCKET (XT LOADER) - IF USED (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
LOADER BUCKET
1шт.
REF
INSTRUCTION
XT LOADER
1шт.
1
391260A1
HOSE ASSY.
1308 mm (51-1/2 in); Closed End; Incl. 2
2шт.
2
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal
3шт.
3
391261A1
HOSE ASSY.
2315 mm (91-1/8 in); Rod End; Incl. 4
2шт.
4
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal
1шт.
5
700-387
ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB
M20 fc sl x 2,7 orb; Incl. 6, 7
2шт.
6
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
7
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face Seal
1шт.
8
700-307
ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB
Incl. 9, 10
2шт.
9
637-64236
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
Boss Seal
1шт.
10
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal
1шт.
11
404355A1
TUBE
Left Hand; Closed End
1шт.
12
404357A1
TUBE
Right Hand; Closed End
1шт.
13
404359A1
TUBE
Left Hand; Rod End
1шт.
14
404361A1
TUBE
Right Hand; Rod End
1шт.
15
367533A1
CLAMP
2шт.
16
214-1492
HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm
2шт.
17
515-24302
CLAMP,1 3/16", Insul, 7/16" Bolt
1 ID
4шт.
19
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
16шт.
20
832-10410
NUT,M10 x 1.5, Cl 8
4шт.
21
379374A1
BLOCK
Mounting
8шт.
22
367658A1
PLATE
8шт.
23
827-10070
BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9
16шт.
24
701-427
TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS
1-3/16 fc sl; Incl. 25
2шт.
25
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal
3шт.
26
404353A1
TUBE
Closed End
1шт.
27
404363A1
TUBE
Rod End
1шт.
28
700-104
HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB
Incl. 29, 30
3шт.
29
637-64236
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
Boss Seal
1шт.
30
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal
1шт.
Выбрано товаров: 32
