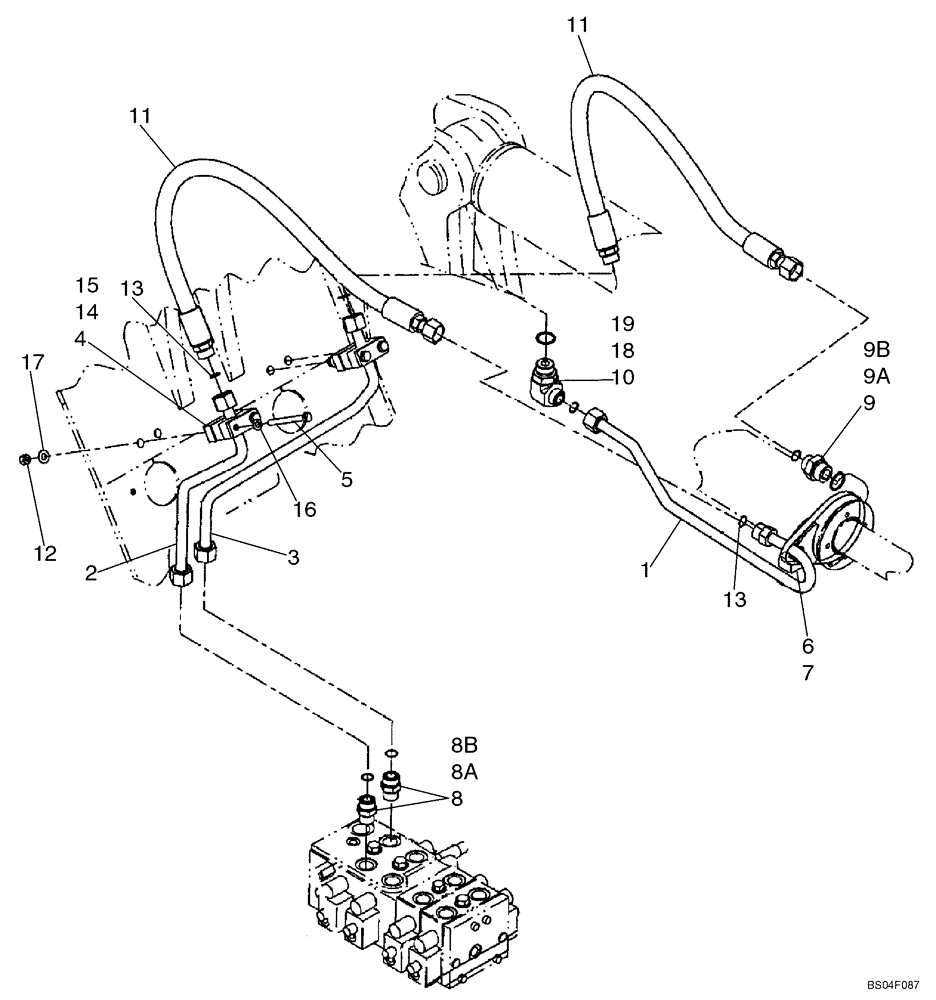

Запчасти Case 521D (08-06A) - HYDRAULICS - LOADER BUCKET (Z BAR LOADER) - IF USED (08) - HYDRAULICS

REF

INSTRUCTION

LOADER BUCKET; Z-BAR LOADER

1шт.

REF

INSTRUCTION

USED WITH OR WITHOUT RSM2-16 RIDE CONTROL OPTION

1шт.

1

8605912

TUBE,19.05 mm OD x 680, 105 mm L

Tilt Cylinder

1шт.

2

404163A1

TUBE

Closed End

1шт.

3

8605914

TUBE,19.05 mm OD x 448, 225 mm L

Rod End

1шт.

4

379374A1

BLOCK

Mounting

2шт.

5

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

4шт.

6

391133A1

CLAMP

1шт.

7

214-1492

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

1шт.

8

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 8A, 8B

2шт.

8a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

8b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

9

700-164

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M33 x 2 Male ORB

1-3/16 fc sl x 33 Or; Incl. 9A, 9B

1шт.

9a

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

9b

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

10

391056A1

ELBOW

90 Deg; Adj.; 25mm ORFS x M33 ORB; Incl. 18, 19

1шт.

11

391054A1

HOSE ASSY.

1058 mm (41-5/8 in); Tilt Cylinder

2шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

14

367658A1

PLATE

2шт.

15

87403155

SPACER

Replaced By 87324906

2шт.

15

87324906

SPACER

Spacer

2шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

17

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

19

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.
