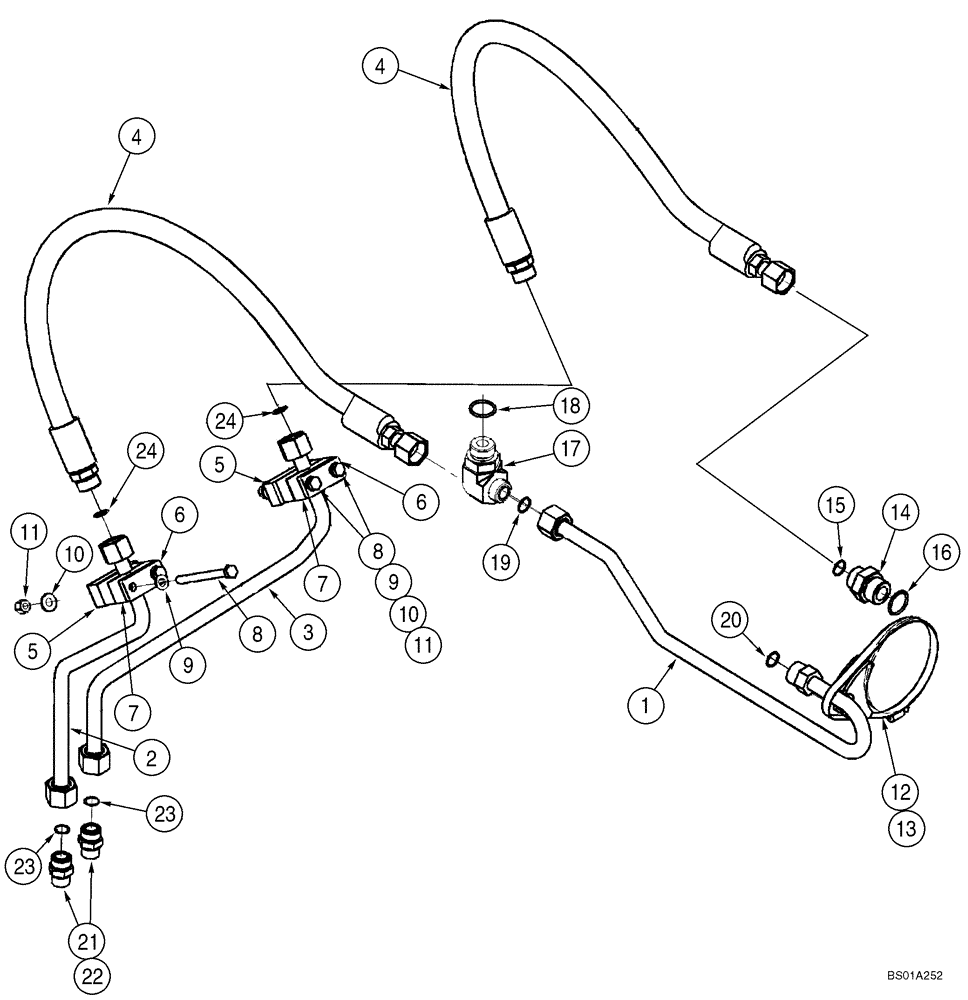

Запчасти Case 521D (08-06) - HYDRAULICS - LOADER BUCKET (Z BAR LOADER) (08) - HYDRAULICS

REF

INSTRUCTION

LOADER BUCKET

1шт.

REF

INSTRUCTION

Z-BAR LOADER

1шт.

1

404161A1

TUBE

Tilt Cylinder; If Used

1шт.

1

8605912

TUBE,19.05 mm OD x 680, 105 mm L

Tilt Cylinder; If Used

1шт.

2

404163A1

TUBE

Closed End

1шт.

3

404165A1

TUBE

Rod End; If Used

1шт.

3

8605914

TUBE,19.05 mm OD x 448, 225 mm L

Rod End; If Used

1шт.

4

391054A1

HOSE ASSY.

1058 mm (41-5/8 in); Tilt Cylinder

2шт.

5

379374A1

BLOCK

Mounting

2шт.

6

367658A1

PLATE

2шт.

7

87403155

SPACER

Replaced By 87324906

2шт.

7

87324906

SPACER

Spacer

2шт.

8

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

4шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

10

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

12

391133A1

CLAMP

1шт.

13

214-1492

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

1шт.

14

700-164

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M33 x 2 Male ORB

1-3/16 fc sl x 33 Or; Incl. 15, 16

1шт.

15

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

16

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

17

391056A1

ELBOW

Incl. 18, 19

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

19

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

20

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

21

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 22, 23

2шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

23

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

24

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

2шт.
