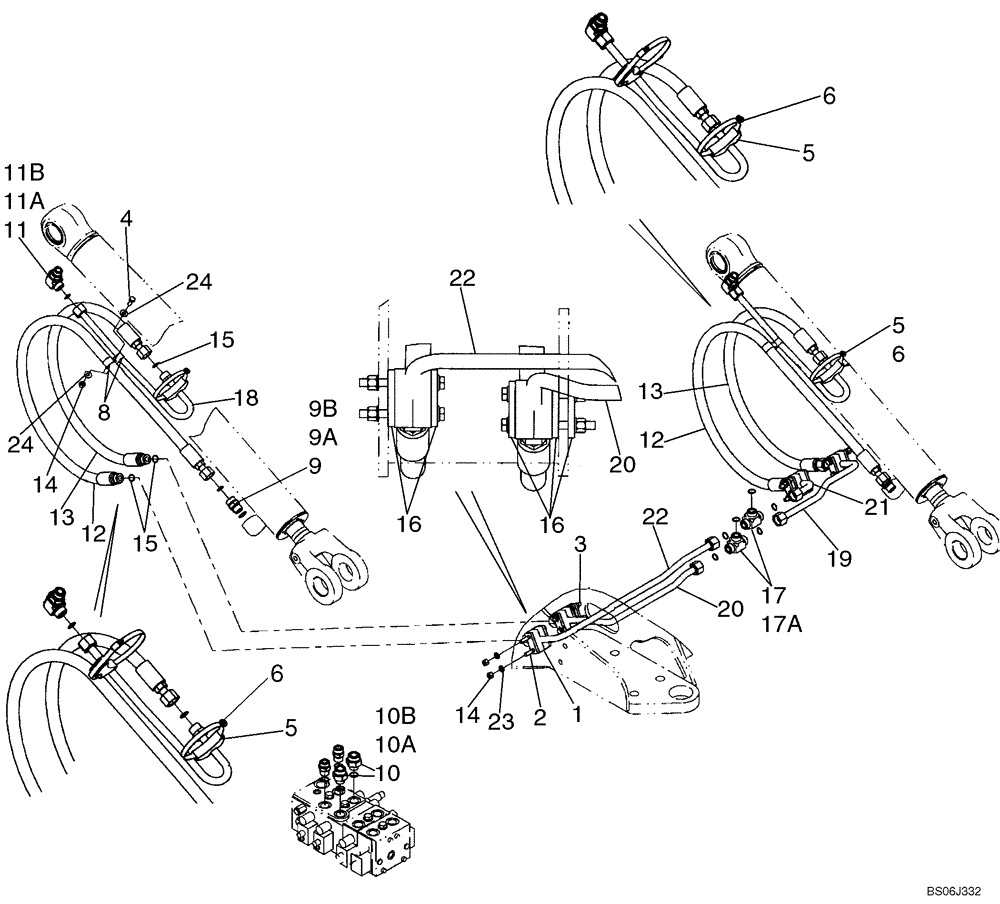

Запчасти Case 521D (08-05A) - HYDRAULICS - LOADER LIFT (XT LOADER) - IF USED (08) - HYDRAULICS

REF

INSTRUCTION

LOADER LIFT; XT-LOADER

1шт.

REF

INSTRUCTION

USED WITH OR WITHOUT RSM2-16 RIDE CONTROL OPTION

1шт.

1

379374A1

BLOCK

Mounting

4шт.

2

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

4шт.

3

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

4шт.

4

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

If Used

2шт.

5

391133A1

CLAMP

2-4шт.

6

214-1488

HOSE CLAMP,130.05mm - 152.4mm

2-4шт.

7

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1-1/2 ID, If Used

2шт.

8

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1 ID, If Used

2шт.

9

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 9A, 9B

2шт.

9a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

9b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

10

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 10A, 10B

2шт.

10a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

10b

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

11

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 11A, 11B

2шт.

11a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

11b

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

12

391259A1

HOSE ASSY.,19.05mm ID x 1746mm L

1746 mm ( 68-3/4 in); Lift Cylinder

2шт.

13

87448546

HOSE ASSY.

Lift Head; 1311mm ( 51-5/8 in )

2шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

8-10шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

4шт.

16

367658A1

PLATE

10шт.

17

701-427

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

1-3/16 fc sl; Incl. 19A

2шт.

17a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

3шт.

18

87448539

HYD TUBE,19.05 mm OD

Lift Cylinder

2шт.

19

8606056

TUBE,19.05 mm OD x 185, 373.5 mm L

Left Hand

1шт.

20

8606058

TUBE,19.05 mm OD x 454.5, 185 mm L

Right Hand

1шт.

21

8606062

TUBE,19.05 mm OD x 127, 87.5 mm L

Left Hand; Rod End; Replaces 87448535

1шт.

22

87448537

HYD TUBE,19.05 mm OD

Right Hand; Rod End

1шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

16шт.

24

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

If Used

4шт.
