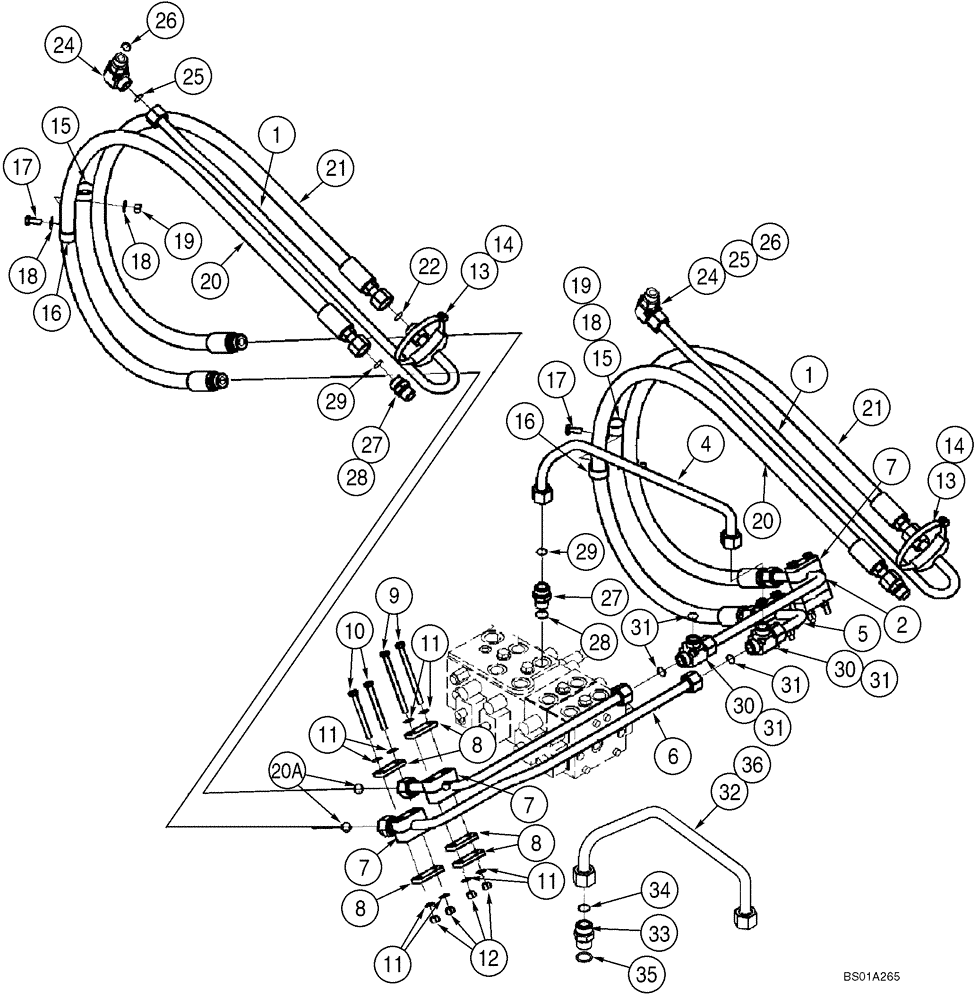

Запчасти Case 521D (08-05) - HYDRAULICS - LOADER LIFT (XT LOADER) (08) - HYDRAULICS

REF

INSTRUCTION

LOADER LIFT

1шт.

REF

INSTRUCTION

XT-LOADER

1шт.

1

86983364

TUBE,19.05 mm OD x 375, 67 mm L

Lift Cylinder

2шт.

2

8606056

TUBE,19.05 mm OD x 185, 373.5 mm L

Left Hand

1шт.

3

8606058

TUBE,19.05 mm OD x 454.5, 185 mm L

Right Hand

1шт.

4

8606060

TUBE,19.05 mm OD x 308.1, 116.9 mm L

Rod End

1шт.

5

8606062

TUBE,19.05 mm OD x 127, 87.5 mm L

Left Hand; Rod End

1шт.

6

8606064

TUBE,19.05 mm OD x 740.4, 181.4 mm L

Right Hand; Rod End

1шт.

7

379374A1

BLOCK

Mounting

4шт.

8

367658A1

PLATE

10шт.

9

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

4шт.

10

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

4шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

16шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

13

391133A1

CLAMP

Loader Lift

2шт.

14

214-1488

HOSE CLAMP,130.05mm - 152.4mm

2шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1-1/2 ID

2шт.

16

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1 ID

2шт.

17

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

18

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

20

391259A1

HOSE ASSY.,19.05mm ID x 1746mm L

1746 mm ( 68-3/4 in); Lift Cylinder; Incl. 20A

2шт.

20a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

21

86983385

HOSE ASSY.

1191 mm; Lift Cylinder

2шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

4шт.

24

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 25, 26

2шт.

25

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

26

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

27

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 28, 29

1шт.

28

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

29

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

30

701-427

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

1-3/16 fc sl; Incl. 31

2шт.

31

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

3шт.

32

404204A1

TUBE

Closed End

1шт.

33

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 34,35

1шт.

34

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

35

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

36

404536A1

TUBE

Closed End; Models With Ride Control

1шт.

37

403916A1

TEE

Incl. 38, 39; Models With Ride Control; Not Illustrated

1шт.

38

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal; Not Illustrated

2шт.

39

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal; Not Illustrated

1шт.
